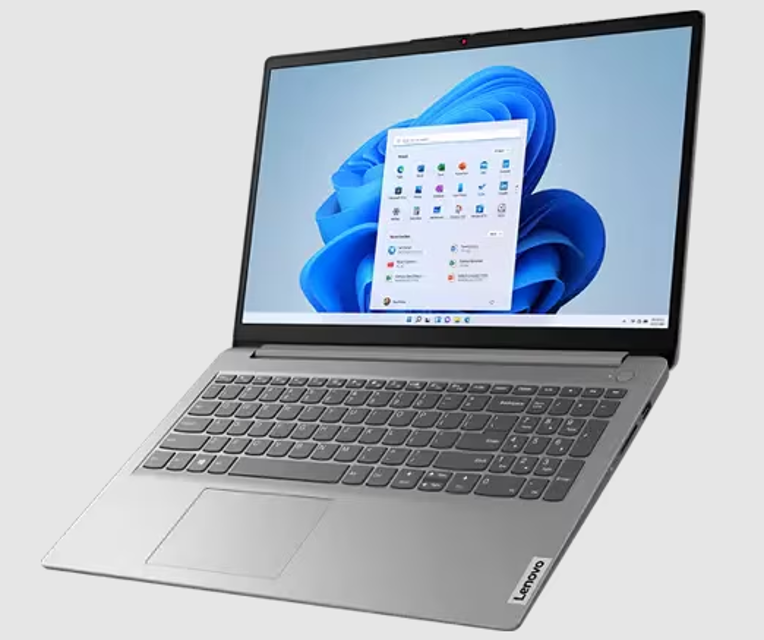

Lenovo Laptop IdeaPad 1 14IGL7 1
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Lenovo Laptop IdeaPad 1 14IGL7 1
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Lenovo Laptop IdeaPad 1 14IGL7 1
Create an account to install this asset package.
Maintenance Plans for Lenovo Laptop Model IdeaPad 1 14IGL7 1
Integrate maintenance plans directly into your work orders in MaintainX.
2242 Solid-State Drive Removal
Check that all the FRUs (or CRUs) have been removed
Disconnect the battery pack cable from the system board
Remove two screws and the 2242 solid-state drive bracket
Remove the 2242 solid-state drive by pulling it away from the slot
2280 Solid-State Drive Removal
Ensure the following FRUs (or CRUs) have been removed
Disconnect the battery pack cable from the system board
Remove the screw securing the battery pack
Remove the 2280 solid-state drive by pulling it away from the slot
LCD Module Removal
Ensure the following FRUs (CRUs) have been removed
Pull out two removable tapes and lift the LCD module
Peel off the mylar tape
Disconnect the camera cable from the LCD module
Disconnect the EDP cable from the LCD module
Remove the LCD module
Fingerprint Reader Removal
Ensure the following FRUs (or CRUs) have been removed
Remove the fingerprint reader
Remove the fingerprint reader cable from the reader
Heat Sink Removal
Ensure the following FRUs (or CRUs) have been removed
Disconnect the battery pack cable from the system board
Loosen three screws and remove the heat sink
