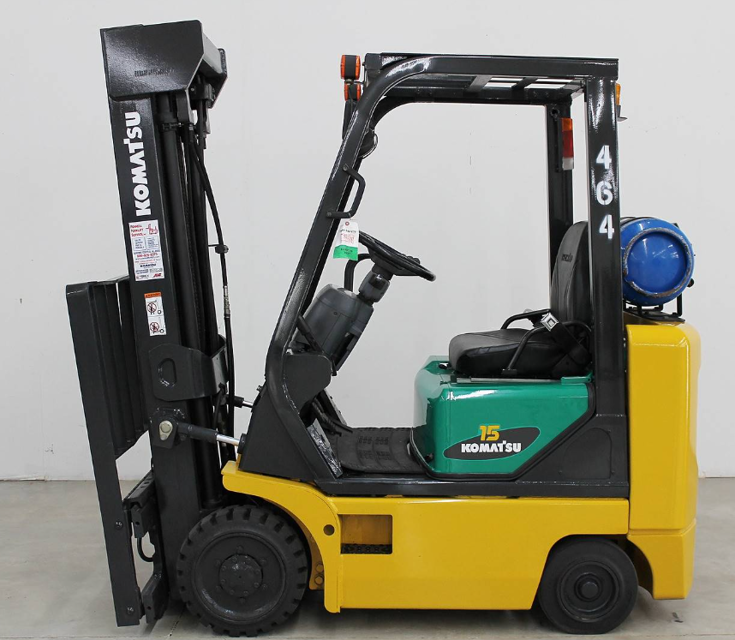

Komatsu Forklift Trucks FG15HTLS-17

Check wheel rims for deformation, cracking and damage

Check wheel bearings for play and abnormal noise

Check hydraulic cylinders for looseness, deformation, cracking, damage and wear

Check all piping/tubing/connectors for oil leakage, deformation or damage

Check operation of hydraulic cylinders

Check hydraulic drift of lift cylinder

Check hydraulic drift of tilt cylinders

Check movement of work equipment control lever(s)

Check forks and fork stopper for deformation, cracking, damage and wear

Every 2 weeks or every 100 hours service

Check steering link for bending, damage and wear

Check steering knuckle for play, deformation and damage

Check for marked variation in minimum turning radius

Change oil in differential case (clutch-type lift trucks, include transmission case)

WARNING: Watch out for HOT OIL. Immediately after operations, the oil will be very hot. Wait for the oil temperature to go down before starting this maintenance operation.

Remove the oil filler plug, then remove the drain plug and drain the oil.

After draining the oil, reinstall and tighten the drain plug and add the specified amount of Komatsu Forklift oil through the oil filler.

After filling with new oil, check the oil level.

Change oil in TORQFLOW transmission case

Check operation of brake master cylinder

Check for oil leakage in brake master cylinder

Check for damage and wear in brake master cylinder

Check operation of wheel cylinders

Check for oil leakage in wheel cylinders

Check for damage and wear in wheel cylinders

Check for damage and wear in brake drum

32.1 REPLACING FUSES AND RELAYS

32.1.1 CHASSIS FUSES (ALL TRUCKS)

Turn the starting switch to the OFF position

Turn the starting switch to the OFF position

Open the cover of the fuse box or relay box and replace the failed component
