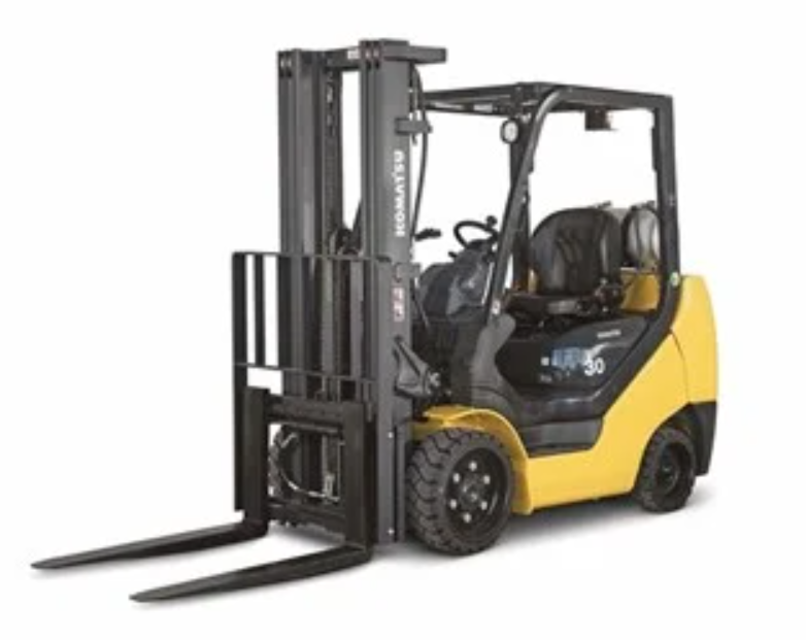

Komatsu Forklift Truck FG30HTUS-16

10.2 PERIODIC INSPECTION AND MAINTENANCE CHECK POINTS

Check with oil level gauge and add oil if necessary. (Also check for oil contamination)

1. Cracks, scratches, deterioration or twist of piping

E-MS SERIES LIMITED FREE LIFT 2-STAGE MAST

Load rollers on the uprights and carriage shimmed to 1/16 in. (1.5 mm) clearance

Chains checked for wear and stretch

E-MD SERIES FULL FREE LIFT 2-STAGE MAST

Load rollers on the uprights and carriage shimmed to 1/16 in. (1.5 mm) clearance

Chains checked for wear and stretch

E-MT SERIES FULL FREE LIFT 3-STAGE MAST

Chains inspected and lubricated with SAE 40 wt. oil or equivalent

7.2 PERIODIC INSPECTION AND MAINTENANCE CHECK POINTS

1. Abnormal noise when traveling

2. Oil level in differential casing

3. Dirt or stain with oil (see “DIFFERENTIAL TORQUES AND SEALS” on page 7-19 for checking oil level and replacing).

4. Oil leakage from differential casing

1. Deformation, cracks or scratches: Visual check on and around the frame and mounting bolt or welded area

2. Looseness of mounting bolt: Tightening torque ofmounting bolt

12. MASTS E-MS SERIES LIMITED FREE LIFT 2-STAGE MAST

After each 100 hours of lift truck operation, and in addition to the daily inspection:

1. Inspect and lubricate the full length of the chains with SAE 40 wt. oil or Bowman Heavy Load Red Grease.

CAUTION: The chains must be coated with a film of lubricant at all times.

E-MD SERIES FULL FREE LIFT 2-STAGE MAST

After each 100 hours of lift truck operation, and in addition tothe daily inspection:

1. Inspect and lubricate the full length of the chains with SAE 40 wt. oil or Bowman Heavy Load Red Grease.

CAUTION: The chains must be coated with a film of lubricant at all times.

E-MT SERIES FULL FREE LIFT 3-STAGE MAST

12. MASTS E-MS SERIES LIMITED FREE LIFT 2-STAGE MAST

Each pair of chains has been factory-lubricated using heat and pressure to force the lubricant thoroughly into the chain links. Avoid removal or contamination of this factory applied lubricant. Do not wash, sand blast, etch, steam clean, or paint the chains on initial mast installation.

The chains must be adjusted with equal tension to ensure proper load distribution and mast operation. To determine equal tension, extend the unloaded mast to put the chains under tension. Press the center of a strand of chain with your thumb, then press at the same place on the other chain of the pair. Each chain in a pair should have equal

“give”. If tension is not equal, adjust the chains as de- scribed in Chain Adjustment.

Inspect the chains. If inspection reveals that one strand of a pair of chains requires replacement, both strands of the pair should be replaced.

*Check for cracked side plates. If you find cracked side plates, replace both strands of chain.

*Check for tight joints. If tight joints are caused by rust or corrosion, loosen them with SAE 40 wt. oil or penetrating oil. If they cannot be loosened, or if the tight joints are caused by bent pins or plates or by peened plate edge, replace both strands of the chain.
