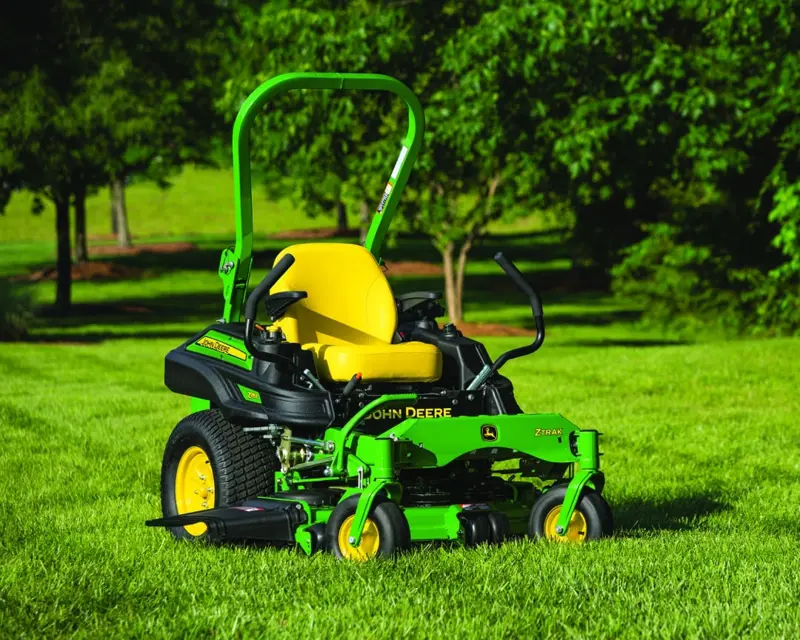

The John Deere Zero-Turn Mower Z915E is a high-performance, commercial-grade mower designed for efficient lawn care. With its powerful engine and advanced maneuverability, this mower delivers exceptional cutting performance and durability, making it ideal for both residential and professional landscaping needs.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for John Deere Zero-Turn Mower Z915E

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

John Deere Zero-Turn Mower Z915E

Create an account to install this asset package.

Maintenance Plans for John Deere Zero-Turn Mower Model Z915E

Integrate maintenance plans directly into your work orders in MaintainX.

Park Brake Maintenance

Stop the machine on a maximum of 17° slope

Lock park brake

Brakes prevent the wheels from turning

Park machine safely

Start engine

Unlock park brake

Move both control levers forward

Drive wheels turn freely and the machine begins to travel forward

Audible hydrostatic whine occurs and the machine moves slowly

Run this procedure

Mower Deck Drive Belt Replacement

Removing Deck Drive Belt

Park machine safely

Lower mower deck to the lowest cutting height position

Remove belt shields

Remove the foot plate

Remove the spring from stud using spring puller

Loosen the hardware from the idler arm guide and spindle belt guide

Remove belt from the deck pulleys

Remove belt from the PTO drive pulley and through the window of the cross frame member

Run this procedure

Fuel Tank Maintenance

Park machine safely. (See Parking Safely in the Safety section.)

Allow engine to cool.

Remove any debris from area around fuel tank cap.

Remove fuel tank cap slowly to allow any pressure built up in tank to escape.

Fill fuel tank only to bottom of filler neck. Do not overfill.

Install fuel tank cap and turn cap until it is tight.

Sign off on the fuel tank maintenance

Run this procedure

Before Each Use Maintenance

Check engine oil

Park machine safely

Allow engine to cool

Clean area around dipstick before removing it

Remove dipstick and wipe it clean

Install dipstick in tube, but do not screw onto threads

Check oil level on dipstick; make sure that oil level is between the ADD and FULL marks

If oil is low, add oil to bring oil level no higher than the FULL mark on dipstick

If oil level is above the FULL mark, drain to the proper level

Run this procedure

Deck Spindles and Front Caster Wheel Pivots Lubrication

Lubricate one mower deck spindle grease fitting (A), located in the center of the deck

Lubricate two mower deck spindle grease fittings (B)

Lubricate Front Caster Wheel Pivots

Lubricate both front caster wheel pivot grease fittings (A) with John Deere Special Purpose HD Water Resistant NM Grease or John Deere Multi-Purpose HD Lithium Complex Grease

Sign off on the lubrication process

Run this procedure
