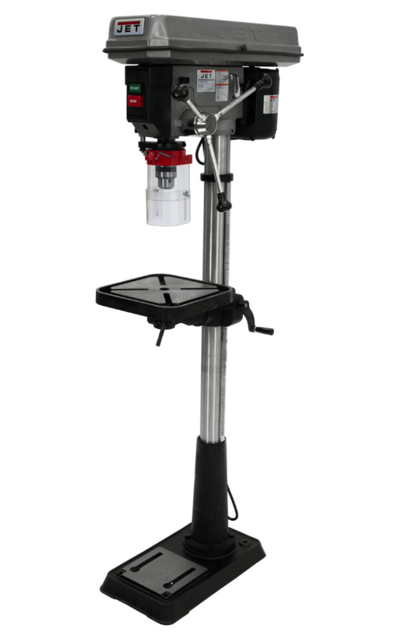

JET Power Tool J-2530

Mark the depth the bit will drill into the workpiece with a pencil

Lower downfeed handle to advance bit to your mark (A)

Advance the lock nuts (B) on the depth stop rod until they are snug to the seat (C)

Confirm the drill bit advances to the marked point

Release the depth stop by advancing the nuts counter-clockwise to the top of the depth stop

Unplug the machine from the power source

Loosen two bar knobs on each side of the head assembly

Rotate the tension adjuster clockwise to bring the motor base as close to the head as possible

Change the location of belts per pulley/belt arrangement chart for desired speed

Rotate the tension adjuster counterclockwise to tension the belts

Tighten two bar knobs. Ensure belts are properly tensioned with ½” deflection under pressure

Verify the spindle speed and pulley/belt arrangement chart on the inside of the pulley cover

Is the chart in Figure 12 applicable for models J-2500 and J-2530 only?

Unplug the machine from the power source

Loosen two hex nuts (A). Do not remove.

Firmly hold the coil spring cover (B).

Describe the adjustment process while referring to Figure 13

Direction to rotate the coil spring cover

Tighten two hex nuts (A). Do not over-tighten.

WARNING: Disconnect from Electrical Supply

Apply a coat of automobile-type wax to the table and column

Is the power cord worn, cut, or damaged in any way?

Replace the power cord if it is worn, cut, or damaged

Ensure the table is clear of any objects

Loosen the socket head set screw (A) with a 3mm hex wrench

Loosen the hex cap screw (B) using a 15/16" wrench and tilt the table to the desired angle

Tighten the socket head set screw (A)

Is the table securely attached to the column after adjustment?
