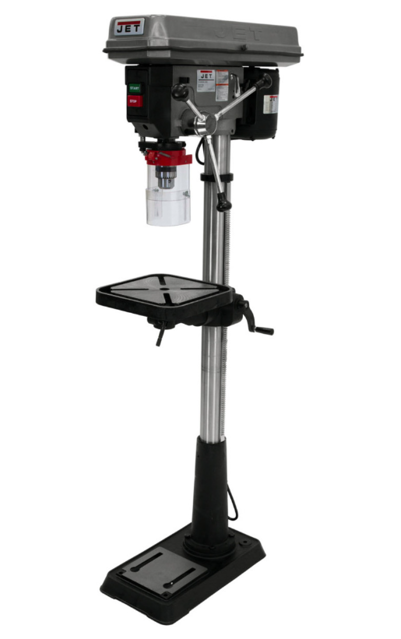

JET Power Tool J-2500

Mark the depth the bit will drill into the workpiece with a pencil

Lower downfeed handle to advance bit to your mark (A)

Advance the lock nuts (B) on the depth stop rod until they are snug to the seat (C)

Will the drill bit advance to the marked point?

To release, advance the nuts counter-clockwise to the top of the depth stop

Ensure the table is clear of any objects

Verify that the 3mm hex wrench and 15/16" wrench are available

Loosen the socket head set screw (A) with a 3mm hex wrench

Loosen the hex cap screw (B) with a 15/16" wrench and tilt the table to the desired angle

Tighten the socket head set screw (A)

Unplug the machine from the power source

Loosen two hex nuts (A). Do not remove.

Firmly hold the coil spring cover (B).

Describe the adjustment process while referring to Figure 13

Tighten two hex nuts (A). Do not over-tighten. Nuts should not contact the housing when tight. The hex nuts should be tightened against each other.

Is the return spring tension adjusted correctly?

Ensure the machine is disconnected from the electrical supply

Apply a coat of automobile-type wax to the table and column

Inspect the power cord for wear, cuts, or damage

If the power cord is damaged, replace it immediately

Unplug machine from the power source

Raise the table until it is about seven inches below the chuck

Place a piece of scrap wood on the table

Lower quill (A) using the downfeed handle

Rotate spindle to align the keyhole in the spindle with the keyhole in the quill

Insert the drift key (B) into the aligned slots and tap lightly

Did the chuck and arbor assembly fall from the spindle?
