JCB
JCB

JCB Telehandler 536-70

Need answers fast?
Explore the manual using AI.

JCB Telehandler 536-70

View PDF Manual

Explore Maintenance Plans

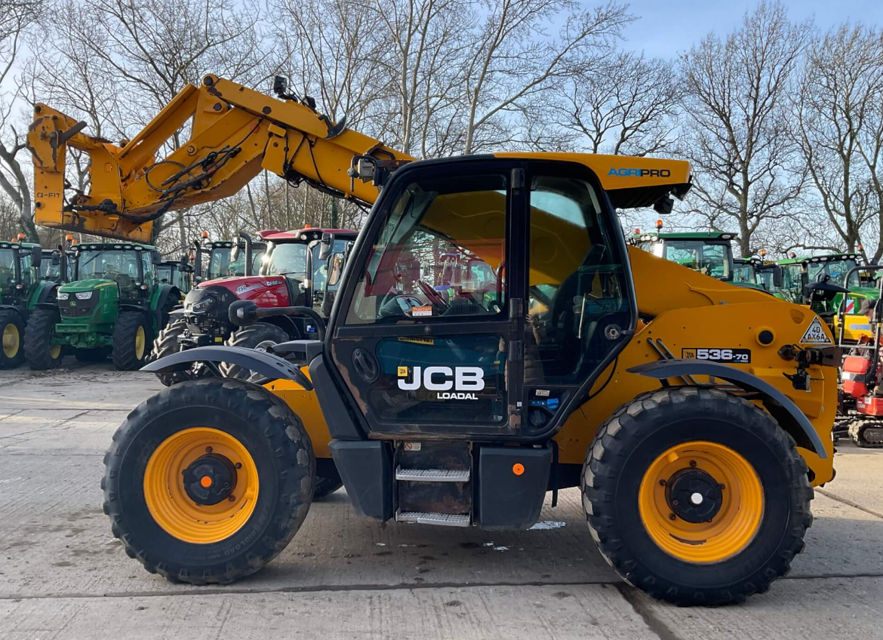

JCB Telehandler 536-70

The JCB Telehandler 536-70 is a versatile industrial equipment designed for lifting and moving materials in construction and agricultural settings. Known for its robust performance and reliability, this telehandler model offers exceptional maneuverability and lifting capacity, making it an essential asset for various heavy-duty applications.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for JCB Telehandler 536-70

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

JCB Telehandler 536-70

JCB Telehandler 536-70

Create an account to install this asset package.

Maintenance Plans for JCB Telehandler Model 536-70

Integrate maintenance plans directly into your work orders in MaintainX.

500 Hourly or 6 Monthly Telehandler Maintenance

Check mark

Coolant Quality and Level Check

Check mark

Engine Oil and Filter(2)(3)(4) Change

Check mark

Air Cleaner Dust Valve(5) Clean

Check mark

Water Separator Check for contamination and Drain

Check mark

Water Separator Fuel Filter(8) Change

Check mark

Front End Accessory Drive (FEAD) Belt Condition Check

Check mark

Powertrain Mounting Bolts for Tightness Check

Check mark

All Hoses - Condition Check

Check mark

Radiator(5) Clean

Run this procedureArrow right

1000 Hourly or 1 Yearly Telehandler Maintenance

Check mark

Coolant Quality and Level Check

Check mark

Engine Oil and Filter(2)(3)(4) Change

Check mark

Air Cleaner Dust Valve(5) Clean

Check mark

Air Cleaner Outer Element(5) Change

Check mark

Water Separator Check for contamination and Drain

Check mark

Water Separator Fuel Filter(8) Change

Check mark

Engine Fuel Filter(5) Change

Check mark

Front End Accessory Drive (FEAD) Belt Condition Check

Check mark

Powertrain Mounting Bolts for Tightness Check

Run this procedureArrow right

First 100 Hours Telehandler Maintenance

Check mark

Coolant Quality and Level Check

Check mark

Pre-Cleaner (if fitted) Check

Check mark

Water Separator Check for contamination and Drain

Check mark

Powertrain Mounting Bolts for Tightness Check

Check mark

All Hoses - Condition Check

Check mark

Transmission Mount Security Check

Check mark

Transmission Oil Level Check

Check mark

Transmission Oil Filter Change

Check mark

Axle Mount Security Check

Run this procedureArrow right

50 Hourly or 1 Weekly Telehandler Maintenance

Check mark

Coolant Quality and Level Check

Check mark

Engine Oil level Check

Check mark

Water Separator Check for contamination and Drain

Check mark

Transmission Oil Level Check

Check mark

Axle(s) Oil Level Check

Check mark

Wheel Nut Security Check

Check mark

Tyre Pressures/Condition Check

Check mark

Wheel Alignment Check

Check mark

Axle Pivots and Linkages(10) Grease

Run this procedureArrow right

10 Hourly or 1 Daily Telehandler Maintenance

Check mark

Coolant Quality and Level Check

Check mark

Engine Oil level Check

Check mark

Transmission Oil Level Check

Check mark

Wheel Nut Security Check

Check mark

Tyre Pressures/Condition Check

Check mark

Wheel Alignment Check

Check mark

Brake System Fluid Level(14) Check

Check mark

Fire Extinguisher (if fitted) Check

Check mark

Wing Mirrors Condition and Security Check

Run this procedureArrow right

Parts for JCB Telehandler 536-70

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

JCB Hydraulic Fluid HP15(9)

4002/0503

JCB Transmission Fluid EP SAE 30 -5°C to 46°C (23°F to 115°F)

4000/2605

JCB Antifreeze HP/Coolant + Water (Refer to Coolant Mixtures)

4006/1120

JCB Special Slide Lubricant

4003/1115

JCB Gear Oil LS Plus

4000/3905

JCB Hydraulic Fluid HP15(9)

4002/0503

JCB Transmission Fluid EP SAE 30 -5°C to 46°C (23°F to 115°F)

4000/2605

JCB Antifreeze HP/Coolant + Water (Refer to Coolant Mixtures)

4006/1120

JCB Special Slide Lubricant

4003/1115

JCB Gear Oil LS Plus

4000/3905

JCB Hydraulic Fluid HP15(9)

4002/0503

JCB Transmission Fluid EP SAE 30 -5°C to 46°C (23°F to 115°F)

4000/2605

JCB Antifreeze HP/Coolant + Water (Refer to Coolant Mixtures)

4006/1120

JCB Special Slide Lubricant

4003/1115

JCB Gear Oil LS Plus

4000/3905
