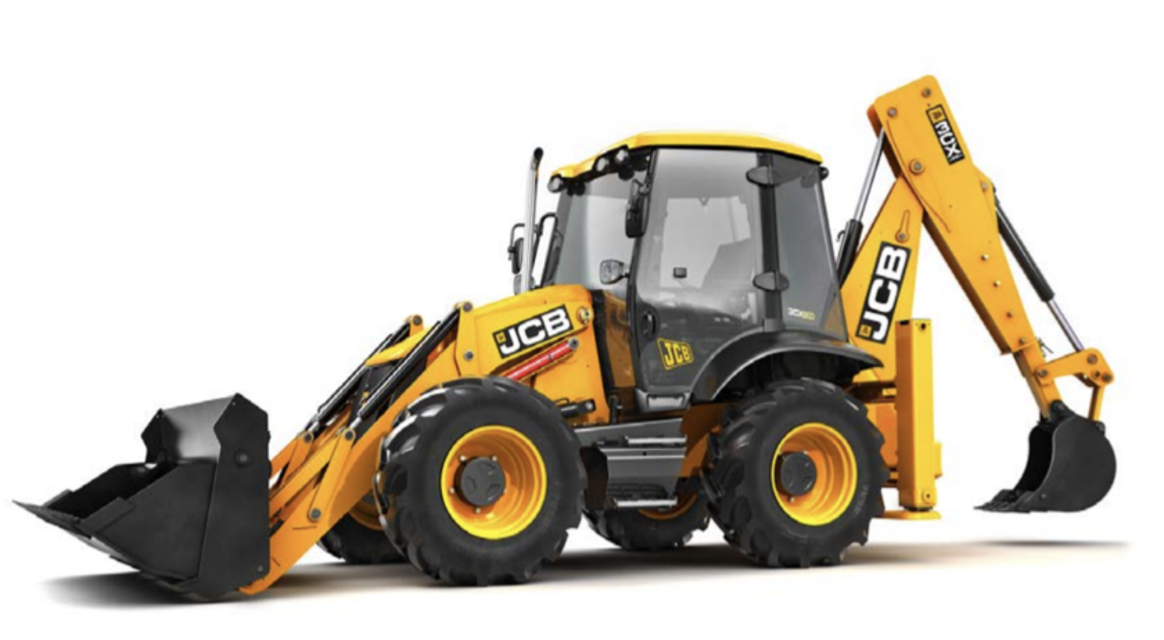

JCB Backhoe Loader 3CXSM 4T
Need answers fast?
Explore the manual using AI.
The JCB Backhoe Loader 3CXSM 4T is a versatile and robust piece of industrial equipment designed for construction and excavation tasks. Known for its reliability and efficiency, this backhoe loader is ideal for various applications, ensuring optimal performance and productivity on job sites.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for JCB Backhoe Loader 3CXSM 4T
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
JCB Backhoe Loader 3CXSM 4T
Create an account to install this asset package.
Maintenance Plans for JCB Backhoe Loader Model 3CXSM 4T
Integrate maintenance plans directly into your work orders in MaintainX.
500 Hours / 6 Monthy Loader Transmission Maintenance
Check Transmission Oil Level
Change Transmission Filter
Check Axle Oil Level (incl. Hubs when applicable)
Change Axle Oil - Limited Slip Differential
Check Tyre Pressures/Condition
Check Front Hub Bearings
Security/Grease Drive Shafts
Check Steer Axle Movement/Shimming
Grease Steer Axle Pivots and Linkages
500 Hours / 6 Monthy Loader Hydraulics Maintenance
Check Hydraulic Oil Level
Change Oil Filter
Check Rams - Chrome Condition
Sign off on the loader hydraulics maintenance
50 Hours / 1 Weekly Loader Maintenance
Check Transmission Oil Level
Check Tyre Pressures/Condition
Grease Front Axle Main Pivot
Check Hydraulic Oil Level
Sign off on the loader maintenance
Loader Check
Inspect steelwork for damage
Note damaged paintwork for future repair
All pivot pins are correctly in place and secured by their locking devices
Steps and handrails are undamaged and secure
No broken or cracked window glass
Upload a photo of replaced damaged items
All bucket teeth are undamaged and secure
All lamp lenses are undamaged
Tyres are undamaged and free from penetration by sharp objects
10 Hours / 1 Daily Loader Maintenance
Check Engine Oil Level
Check Coolant Quality/Level
Check Transmission Oil Level
Check Tyre Pressures
Check Tyre Condition
Grease Front Axle Main Pivot
Check Hydraulic Oil Level
Sign off on the daily loader maintenance
Parts for JCB Backhoe Loader 3CXSM 4T
Access the parts list for your equipment in MaintainX.
Bonded Washer, 1/4 in. BSP
1406/0011
Male Adapter, 1/2 in. x 3/8 in.
1606/0007
Male Adapter, 1/2 in. x 1/2 in.
1604/0004
Male Adapter, 1 in M x 3/4 in M BSP
1606/0012
Ultra Fast Adhesive (310ml), For Direct Glazing
4103/2109
Bonded Washer, 1/4 in. BSP
1406/0011
Male Adapter, 1/2 in. x 3/8 in.
1606/0007
Male Adapter, 1/2 in. x 1/2 in.
1604/0004
Male Adapter, 1 in M x 3/4 in M BSP
1606/0012
Ultra Fast Adhesive (310ml), For Direct Glazing
4103/2109
Bonded Washer, 1/4 in. BSP
1406/0011
Male Adapter, 1/2 in. x 3/8 in.
1606/0007
Male Adapter, 1/2 in. x 1/2 in.
1604/0004
Male Adapter, 1 in M x 3/4 in M BSP
1606/0012
Ultra Fast Adhesive (310ml), For Direct Glazing
4103/2109
