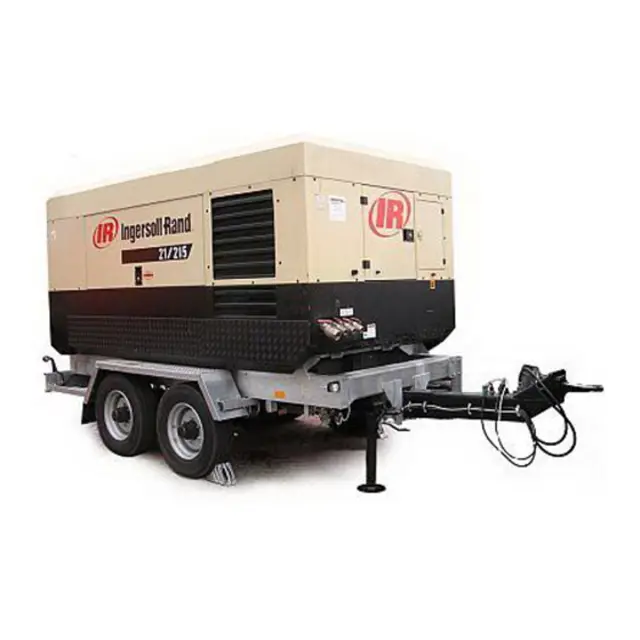

Ingersoll Rand Mobile Compressor 21/215HA

Warning: Never remove and replace element(s) when the machine is running.

Cleaned the exterior of the filter housing?

Removed the filter element by releasing the nut?

Is the safety element to be renewed?

Cleaned the interior of the filter housing prior to removing the safety element?

Checked for cracks, holes or any other damage to the element?

Checked the seal at the end of the element and replaced if any sign of damage is evident?

Assembled the new element into the filter housing ensuring that the seal seats properly?

Secured the element in the housing by hand tightening the nut?

Check Hoses (Oil, Air, Intake, etc.)

Check Automatic Shutdown System

Check Compressor heat exchanger exterior

Check Engine heat exchanger exterior

Sign off on the monthly mobile compressor maintenance

Check Air Cleaner Service Indicators

Check Fuel Tank (Fill at end of day)

Check Fuel/Water Separator Drain

Remove Y–strainer screens at the bottom of the moisture separator and both filters and clean out any residue

Verify that the orifices below the Y–strainers are not clogged

Verify that the piping from the orifice purge points to the exhaust system is not clogged

Sign off on the system maintenance

Refer to the Wedge diagnostic display codes table for a listing of shutdown conditions.

At three month intervals, test the low engine fuel level switch circuit as follows:

Start the machine. Note: Do not press the load button.

Disconnect the switch, the machine should shutdown.

At twelve month intervals, test the low engine fuel level switch by removing and operating the float manually

CAUTION: Never remove or replace switches when the machine is running.

Sign off on the 3 Monthly Protective Shutdown System Test
