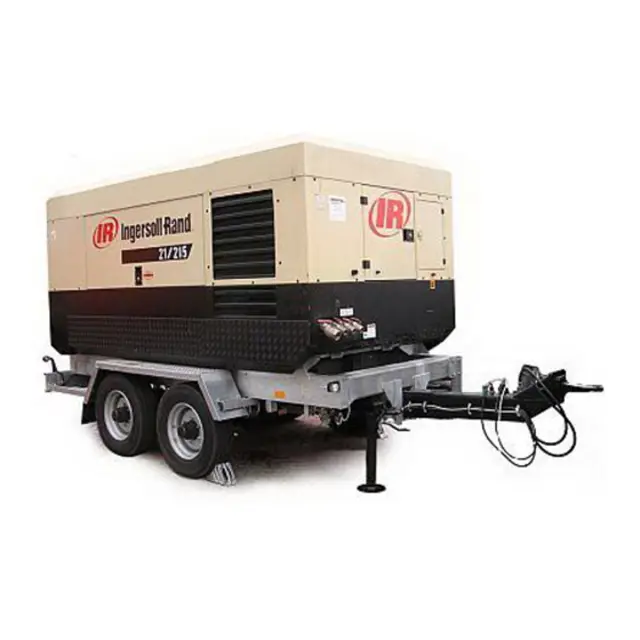

Ingersoll Rand Mobile Compressor 21/215

Check Air Cleaner Precleaner Dumps

Check Battery Connections/Electrolyte

• Refer to the Wedge diagnostic display codes table for a listing of shutdown conditions.

- Low engine fuel level switch.

• At three month intervals, test the low engine fuel level switch circuit as follows:

Note: Do not press the load button.

2. Disconnect the switch, the machine should shutdown.

4. At twelve month intervals, test the low engine fuel level switch by removing and operating the float manually

CAUTION: Never remove or replace switches when the machine is running.;

Remove Y–strainer screens at the bottom of the moisture separator and both filters and clean out any residue

Verify that the orifices below the Y–strainers are not clogged

Verify that the piping from the orifice purge points to the exhaust system is not clogged

Sign off on the system maintenance

WARNING: Hot engine coolant and steam can cause injury. When adding coolant or antifreeze solution to the engine radiator, stop the engine at least one minute prior to releasing the radiator filler cap. Using a cloth to protect the hand, slowly release the filler cap, absorbing any released fluid with the cloth. Do not remove the filler cap until all excess fluid is released and the engine cooling system fully depressurised.

WARNING: Follow the instructions provided by the antifreeze supplier when adding or draining the antifreeze solution. It is advisable to wear personal protective equipment to prevent skin and eye contact with the antifreeze solution.

Oil cooler and radiator cleaned with compressed air and non-flammable cleaning solvent

Accumulation of oil, grease and dirt removed from the exterior core of the cooler

Engine cooling system fully depressurised before removing the filler cap

Sign off on the monthly compressor oil cooler and engine radiator air charge cooler inspection

* Every 1500 Hours Injection Nozzle Check

• Check Wheels (Bearings, Seals, etc.)

• Test Shutdown Switch Settings

• Check Scavenger Orifice & Related Parts

• Replace Oil Separator Element
