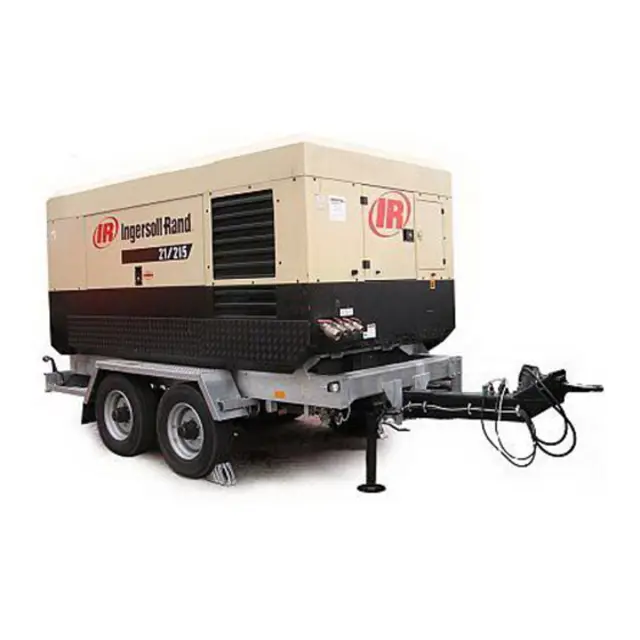

Ingersoll Rand Mobile Compressor 21/215HA

Remove Y–strainer screens at the bottom of the moisture separator and both filters and clean out any residue

Verify that the orifices below the Y–strainers are not clogged

Verify that the piping from the orifice purge points to the exhaust system is not clogged

Sign off on the system maintenance

Check Hoses (Oil, Air, Intake, etc.)

Check Automatic Shutdown System

Check Compressor heat exchanger exterior

Check Engine heat exchanger exterior

Sign off on the monthly mobile compressor maintenance

Check Air Cleaner Service Indicators

Check Fuel Tank (Fill at end of day)

Check Fuel/Water Separator Drain

* Every 1500 Hours Injection Nozzle Check

• Check Wheels (Bearings, Seals, etc.)

• Test Shutdown Switch Settings

• Check Scavenger Orifice & Related Parts

• Replace Oil Separator Element

Warning: This maintenance check requires trained personnel!

Verify, during full–load (maximum compressed air delivery) that the IQ System filter restriction indicators do not show excessive restriction.

Restriction indicators for the filters are mounted inside the control panel.

Restriction indicators will shut down the compressor if restriction exceeds recommended values.

Sign off on the daily IQ system maintenance
