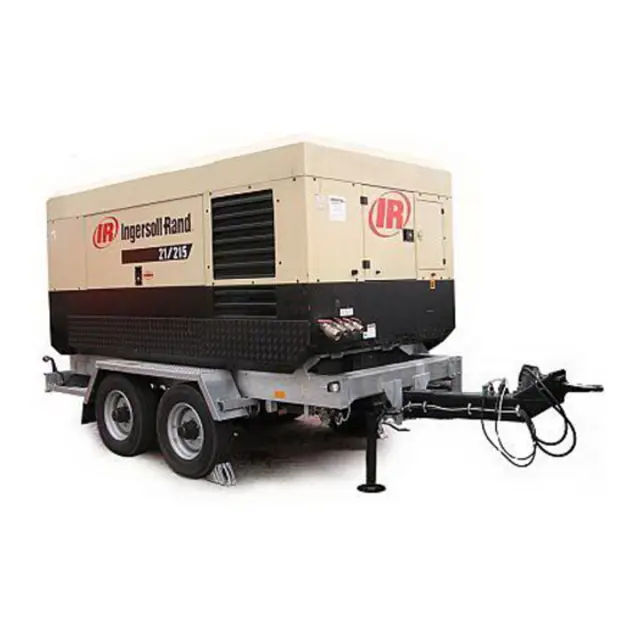

Ingersoll Rand Mobile Compressor 21/215

Sign off on the maintenance tasks

Sign off on the mobile compressor maintenance

Warning: Ensure engine is stopped and pressure is relieved from air system before starting.

Pressure relieved from air system?

All wires and hoses disconnected from drains on bottom of each filter housing?

Fittings and hoses inspected for blockage?

Housing loosened with a chain wrench or similar tool?

Housing removed by hand after loosening?

Housing lowered to floor panel and leaned against the airend?

Filter element replaced without damaging outer wrap?

Enter the part number of new element

WARNING: Do not remove the filter(s) without first making sure that the machine is stopped and the system has been completely relieved of all air pressure.

• Disconnect all hoses and tubes from the separator tank cover plate.

• Remove the drop–tube from the separator tank cover plate and then remove the cover plate. Remove the separator element.

• Examine the filter element. Examine all hoses and tubes, and replace if necessary.

• Thoroughly clean the orifice/drop tube and filter gasket contact area before reassembly. Install the new element.

WARNING! Do not remove the staple from the anti–static gasket on the separator element since it serves to ground any possible static build–up.Do not use gasket sealant since this will affect electrical conductance.

Remove Y–strainer screens at the bottom of the moisture separator and both filters and clean out any residue

Verify that the orifices below the Y–strainers are not clogged

Verify that the piping from the orifice purge points to the exhaust system is not clogged

Sign off on the system maintenance
