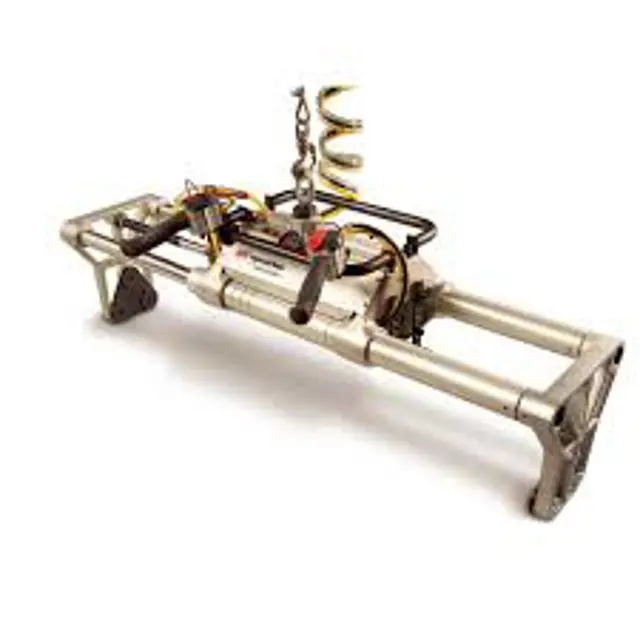

Ingersoll Rand Bundle Handler SBH1-5-1

For equipment in continuous service, frequent inspections should be made by operators at the beginning of each shift

1. OPERATION: Check for visual signs or poor movement which could indicate a potential problem; make sure all controls function properly; check bundle handler swivels freely through 90 degrees

2. INTERLOCK (Safety Circuit) - ZA Controls only: Test operation with no load; raise empty bundle handler to the “UP” stop; with “UP” lever depressed for 3 to 4 seconds (to simulate load), actuate clamp and unclamp circuit; clamp should not open; refer to “OPERATION” section, ‘Interlock’ for correction instructions

3. AIR SYSTEM: Visually inspect all connections, fittings, hoses, and components for indication of air leaks; repair any leaks or damage; tighten any loose connections

4. BALANCER: Follow inspection recommendations in Balancer Parts, Operation and Maintenance Manual form MHD56151

5. GUIDE BARS: Ensure guide bars are clean and lubricated; clean guide bars when dirty or binding occurs; use a multipurpose synthetic lubricant to lubricate guide bars

6. WIRE ROPE: Inspect for wear and lubrication; replace kinked, frayed, or twisted wire rope

Make a thorough visual inspection of the bundle handler for damage; do not operate if damaged

Frequency of periodic inspection depends on the severity of usage:

Disassembly may be required for HEAVY or SEVERE usage

Keep accumulative written records of periodic inspections to provide a basis for continuing evaluation

Inspect all items in “Frequent Inspection”. Also inspect the following:

1. FASTENERS: Check all rivets, split pins, capscrews, and nuts; replace if missing or tighten if loose

2. ALL COMPONENTS: Inspect for wear, damage, deterioration, deformation, and cleanliness; if external evidence indicates the need, disassemble; check handles, housings, bearings, springs, clamp pads, and covers; replace worn or damaged parts; clean, lubricate, and reassemble

3. SUPPORTING STRUCTURE: Check for distortion, wear, and continued ability to support load

4. LABELS AND TAGS: Check for presence and legibility of labels; replace if damaged or missing

Frequency of periodic inspection depends on the severity of usage:

Inspect all items in “Frequent Inspection”. Also inspect the following:

1. FASTENERS: Check all rivets, split pins, capscrews, and nuts; replace if missing or tighten if loose

2. ALL COMPONENTS: Inspect for wear, damage, deterioration, deformation, and cleanliness; if external evidence indicates the need, disassemble; check handles, housings, bearings, springs, clamp pads, and covers; replace worn or damaged parts; clean, lubricate, and reassemble

3. SUPPORTING STRUCTURE: Check for distortion, wear, and continued ability to support load

4. LABELS AND TAGS: Check for presence and legibility of labels; replace if damaged or missing

5. BALANCER: Follow inspection recommendations in Balancer Parts, Operation and Maintenance Manual form MHD56151

6. POWER ROTATE (optional feature): Inspect for proper operation and leakage

Frequency of periodic inspection depends on the severity of usage:

Disassembly may be required for HEAVY or SEVERE usage

Keep accumulative written records of periodic inspections to provide a basis for continuing evaluation

Inspect all items in “Frequent Inspection”. Also inspect the following:

1. FASTENERS: Check all rivets, split pins, capscrews, and nuts; replace if missing or tighten if loose

2. ALL COMPONENTS: Inspect for wear, damage, deterioration, deformation, and cleanliness; if external evidence indicates the need, disassemble; check handles, housings, bearings, springs, clamp pads, and covers; replace worn or damaged parts; clean, lubricate, and reassemble

3. SUPPORTING STRUCTURE: Check for distortion, wear, and continued ability to support load

4. LABELS AND TAGS: Check for presence and legibility of labels; replace if damaged or missing
