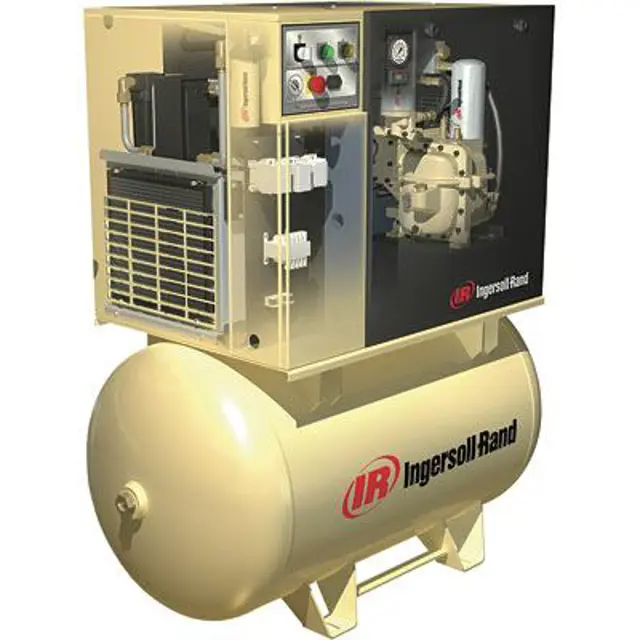

Ingersoll Rand Air Compressor UP6S 20

Completely disassemble the drains and clean all their components

Verify that the condensate drains are operating correctly;

If the air filter indicator locks into the red position before the 2000 hour/ 1 year change out period

Change the air filter if needed

Dusty environments require more frequent replacement or, optional high dust filter

The indicator sould be checked with the unit stopped

Check motors with grease fittings and grease bearings per motor data tag

Check scavenge screen for blockage, clean if required

Remove the cover plate and any necessary fittings

Clean the interior thoroughly and inspect all internal surfaces;

Change drive belt and gas spring

Check and replace all items included within 2000 hour service

Fit the following reconditioning parts as appropriate:

Solenoid valves, Inlet valve kit, Minimum Pressure valve kit, Thermostatic Valve Kit

Replace Premium Coolant (Ultra) at which ever interval occur first;
