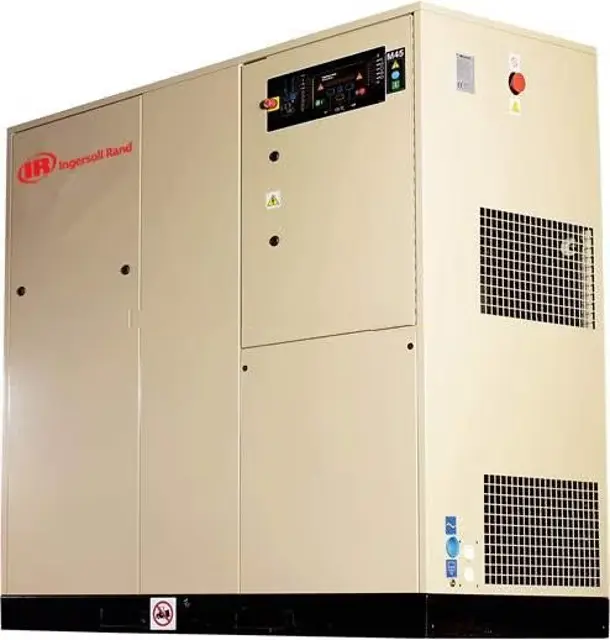

Ingersoll Rand Air Compressor SSR-XF75

WARNING! Confirm all pressure is relieved from the compressor system and that the main electric disconnect switch is open and tagged to remain open.

Pressure relieved from the compressor system?

Main electric disconnect switch is open and tagged to remain open?

Place a suitable container under the filter housing drain valve which is located near the bottom of the housing.

Container placed under the filter housing drain valve?

Remove the bolt at the bottom of the housing. This will free the housing and element from the filter head. Remove the 'O' ring gasket.

Bolt and 'O' ring gasket removed?

Inspect the element and housing for foreign particles which have been trapped in the element and also for general overall condition - then discard the element and clean the housing.

Element and housing inspected and cleaned?

Warning: Care should be exercised during these lamp checks because of the electrical hazards that will be present when the electrical box is open.

Power On (1LT) lamp lights up when power is applied to the transformer

Coolant Filter Lamp (3LT) lights up when power is applied to (3B-12)

Air Filter Warning Lamp (4LT) lights up when power is applied to (3B-13)

Automatic Restart Lamp (14LT) lights up when power is applied to (3B-8)

CAUTION! Grease should only be added when the motor is stopped and power disconnected.

Motor stopped and power disconnected?

When regreasing, stop motor and remove inlet and outlet plugs.

Inlet and outlet plugs removed?

Inlet grease gun fittings and spring-loaded outlets are arranged at each end on the motor housing. Use a hand lever type grease gun.

Hand lever type grease gun used?

Determine in advance the quantity of grease delivered with each stroke of the lever. Add grease in the following quantity: 3/4 cu. in. or 0.6 oz. (13.0 c.c. or 18 grams)

Do not expect grease to appear at the outlet, but if it does discontinue greasing at once.

Warning: This check requires trained personnel!

Condensate trap is draining condensate

If condensate trap is not draining, report the issue to the maintenance team and stop the procedure

Is the aftercooler lowering the discharge air temperature below the dew point?

Is there a flow from the condensate trap?

If there is no flow from the condensate trap, it might be due to very low humidity

Is an open funnel used in the drain line?

Sign off on the water carryover to discharge lines check

Enter the differential pressure across the element

CAUTION! Shut down the compressor, close the service air line isolation valve and open the main electrical disconnect switch. Confirm all air pressure is relieved from receiver.

Disconnected the scavenge tube at the airend?

Loosened the fitting that holds the scavenge tube into the tank and withdrawn the tube assembly?

Disconnected the piping from the receiver cover?

Removed the bolts that hold the tank cover in position?

Lifted the separator element up and out of the tank?

Cleaned the gasket surface on both the tank and its cover?

Checked the tank for foreign objects?
