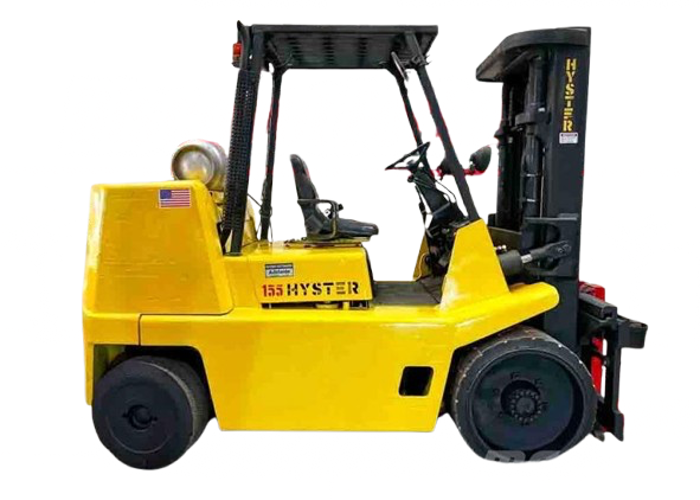

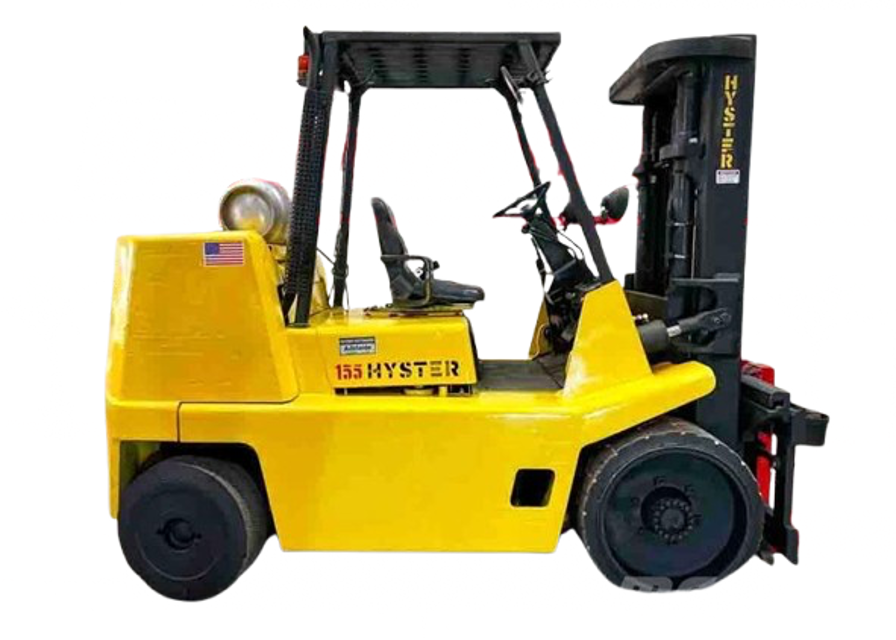

Hyster-Yale Forklift S120XL2
Need answers fast?
Explore the manual using AI.
The Hyster-Yale Forklift S120XL2 is a robust industrial forklift designed for heavy-duty applications. Known for its reliability and efficiency, this model is ideal for warehouses and manufacturing environments, ensuring optimal performance and safety in material handling tasks.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Hyster-Yale Forklift S120XL2
Create an account to install this asset package.
Maintenance Plans for Hyster-Yale Forklift Model S120XL2
Integrate maintenance plans directly into your work orders in MaintainX.
2000 Hourly / 1 Yearly Oil Change
Change hydraulic system oil
Change speed reducer and differential oil single speed powershift
Change powershift transmission oil single speed powershift
Sign off on the oil change
8 Hourly / 1 Daily Forklift Check
Condition of the tires
Coolant hoses condition
Cooling system
Cooling system GM V-6 EPA Compliant Engine
Fuel tank
Engine oil GM V-6 level
Diesel engine oil Perkins 1004-42 level
Diesel engine oil Perkins 1104C-44 level
Condition of the seat belts and seat rails
250 Hourly / 6 Weekly Mast Lubrication
Lubricate mast side shift carriage rollers
Lubricate mast sliding surfaces and load roller surfaces
Lubricate mast fork guides
Lubricate mast pivots
Sign off on the mast lubrication
500 Hourly / 3 Monthly Forklift Maintenance
Change diesel engine oil Perkins 1004-42
Change diesel engine oil Perkins 1104C-44
Check crankcase breather operation Perkins 1004-42, Perkins 1104C-44
Change diesel engine oil filter Perkins 1004-42
Change diesel engine oil filter Perkins 1104C-44
Check PCV Valve GM V-6;
350 Hourly / 2 Monthly Forklift Maintenance
Lubricate steering axle spindles
Clean debris from radiator core
Clean or replace air filter
Check brake fluid
Check engine idle speed GM V-6
Check engine idle speed diesel
Check engine governor speed GM V-6
Check engine governor speed diesel
Adjust clutch, brake and inching/brake pedals
Parts for Hyster-Yale Forklift S120XL2
Access the parts list for your equipment in MaintainX.
Silicon Spray
328388
Oil Filter
336831
Silicon Spray
328388
Oil Filter
336831
Silicon Spray
328388
Oil Filter
336831
