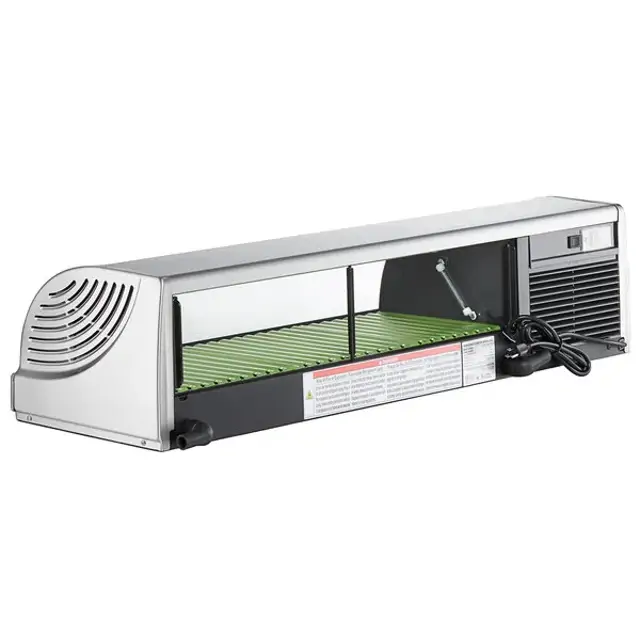

Hoshizaki Counter Showcase HNC-180BA-L-S

Visually inspect the exterior of the shipping container for severe damage

Report any severe damage to the carrier

Remove shipping carton, evaporator spacer, tape(s) and packing

Ensure no packing material is left in the showcase

Remove shipping tape holding the door

Pre-maintenance Safety Instructions

Unplug the showcase before starting any cleaning or maintenance operations.

Ensure not to disassemble the showcase further than illustrated in Fig. 1.

Avoid touching or wetting the machine compartment parts to prevent failure or breakdown.

Push the test button to simulate a ground fault on the load circuit.

Did the Ground Fault Interrupter trip successfully?

Ensure no further disassembly than illustrated in Fig. 1

Avoid touching or wetting the machine compartment parts

Preparation of Sanitizing Solution

Mix 0.26 gal. (1 liter) of water with 0.13 fl. oz. (3.7 ml) of 5.25% sodium hypochlorite solution or use the recommended Hoshizaki sanitizer as directed

Disconnect the hose from the joint

Turn up the end of the joint(s)

Unplug the showcase before cleaning

Ensure the showcase is not disassembled beyond the illustrated figure

Confirm no contact or wetting of machine compartment parts

Clean the interior and food mounts daily for sanitary use

Use a soft cloth soaked in warm water to clean the exterior

Ensure no water jet is used for cleaning the exterior

Use only a neutral cleaner for cleaning

Pre-maintenance Safety Instructions

Unplug the showcase before starting any cleaning or maintenance operations.

Ensure not to disassemble the showcase further than illustrated in Fig. 1.

Avoid touching or wetting the machine compartment parts to prevent failure or breakdown.

Condenser Inspection and Cleaning

Clean the condenser using a brush or vacuum cleaner if required.

Note any additional cleaning frequency required based on the showcase location.
