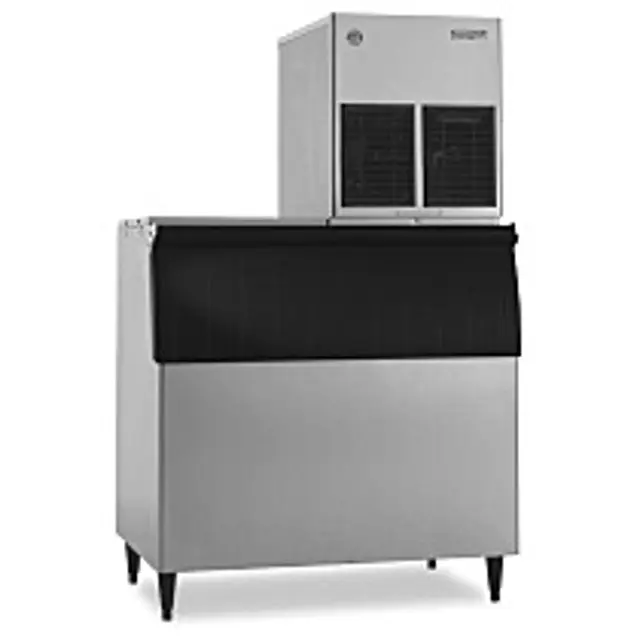

HOSHIZAKI Modular Flaker F-1001MWH-C

Only qualified service technicians should service the appliance.

To reduce the risk of electric shock, do not touch the icemaker power switch or control switch with damp hands.

Before Servicing: Move the icemaker's power switch to the OFF position. Turn off the power supply. Place the disconnect (if applicable) in the off position. Lockout/Tagout to prevent the power supply from being turned back on inadvertently.

CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are securely in place after any maintenance is done to the appliance. Make sure that none have fallen into the dispenser unit/ice storage bin.

Inlet Water Valve and Drain Valve: Close the water supply line shut‑off valve and drain the water system. Clean the inlet water valve screen and clean and inspect the drain valve.

Water Hoses: Inspect the water hoses and clean/replace if necessary.

Condenser: Inspect. Clean if necessary by using a brush or vacuum cleaner.

Icemaker: Inspect for oil spots, loose components, fasteners, and wires.

Only qualified service technicians should service the appliance.

To reduce the risk of electric shock, do not touch the icemaker power switch or control switch with damp hands.

Before Servicing: Move the icemaker's power switch to the 'OFF' position. Turn off the power supply. Place the disconnect (if applicable) in the off position. Lockout/Tagout to prevent the power supply from being turned back on inadvertently.

CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are securely in place after any maintenance is done to the appliance. Make sure that none have fallen into the dispenser unit/ice storage bin.

External Water Filters: Check for proper pressure and change if necessary.

Icemaker Exterior: Wipe down with a clean, soft cloth. Use a damp cloth containing a neutral cleaner to wipe off oil or dirt build up. Clean any chlorine staining (rust colored spots) using a non-abrasive cleanser.

Infrared Sensor Lens; Underside of Icemaker and Top Kits; Bin Door and Snout: Wipe down with a clean cloth and warm water.

Sign off on the monthly modular flaker maintenance

• Only qualified service technicians should service the appliance.

• To reduce the risk of electric shock, do not touch the icemaker power switch or control switch with damp hands.

• Before Servicing: Move the icemaker's power switch to the "OFF" position. Turn off the power supply. Place the disconnect (if applicable) in the off position. Lockout/Tagout to prevent the power supply from being turned back on inadvertently.

• CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are securely in place after any maintenance is done to the appliance. Make sure that none have fallen into the dispenser unit/ice storage bin.

Icemaker and Dispenser Unit/lice Storage Bin: Clean and sanitize per the cleaning and sanitizing instructions provided in the instruction manual or on maintenance label.

Evaporator Condensate Drain Pan and Gear Motor Drain Pan: Wipe down with a clean cloth and warm water. Slowly pour one cup of sanitizing solution (prepare as outlined in the sanitizing instructions provided in the instruction manual) into the evaporator condensate drain pan and then slowly pour one cup into the gear motor drain pan. Be careful not to overflow the pans. Repeat with a cup of clean water to rinse.

Icemaker and Dispenser Unit/Ice Storage Bin Drains: Check to make sure they are clear.

Extruding Head Seal Bolts: Inspect for leakage around seal bolts. Tighten (see torque values below) or replace as necessary. Seal bolts must be replaced once removed because seal material is one-time use only. If new seal bolts do not have preapplied threadlocker, apply Loctite 243 or equivalent threadlocker to seal bolt threads.

WARNING: Only qualified service technicians should service the appliance.

To reduce the risk of electric shock, do not touch the icemaker power switch or control switch with damp hands.

Before Servicing: Move the icemaker's power switch to the 'OFF' position. Turn off the power supply. Place the disconnect (if applicable) in the off position. Lockout/Tagout to prevent the power supply from being turned back on inadvertently.

CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are securely in place after any maintenance is done to the appliance. Make sure that none have fallen into the dispenser unit/ice storage bin.

If the air filters are dirty, wash them with warm water and neutral cleaner.

Sign off on the air filters maintenance

WARNING: Only qualified service technicians should service the appliance.

To reduce the risk of electric shock, do not touch the icemaker power switch or control switch with damp hands.

Before Servicing: Move the icemaker's power switch to the 'OFF' position. Turn off the power supply. Place the disconnect (if applicable) in the off position. Lockout/Tagout to prevent the power supply from being turned back on inadvertently.

CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are securely in place after any maintenance is done to the appliance. Make sure that none have fallen into the dispenser unit/ice storage bin.

Icemaker power switch in the 'OFF' position

Disconnect (if applicable) in the off position

Lockout/Tagout to prevent the power supply from being turned back on inadvertently

All components, fasteners, and thumbscrews are securely in place
