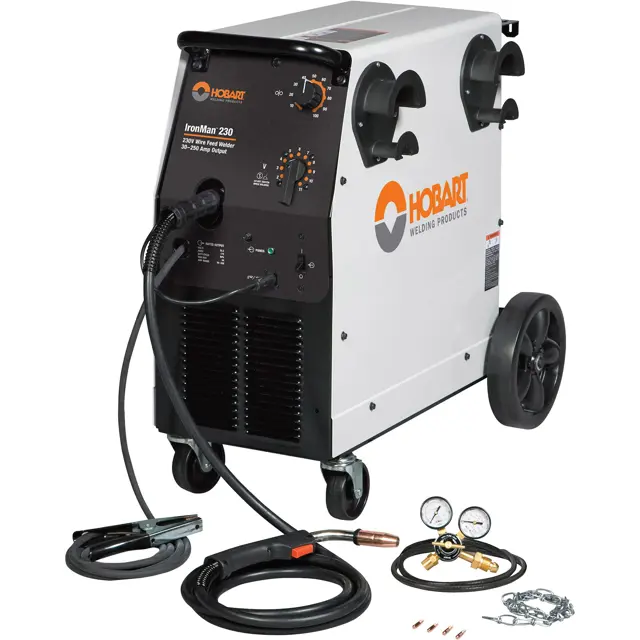

Hobart Hobart Hobart - IronMan 230 IronMan 230 IronMan 230

Loosen screw. Slide tip as close to drive rolls as possible without touching. Tighten screw.

The drive roll consists of two different sized grooves. The stamped markings on the outer surface of the foll refers to the groove on the opposite side of the drive roll. The groove closest to the motor shaft is the proper groove to thread wire (see Section 3-15).

Turn nut one click to secure drive roll.;

CB1 protects main circuit board PC1. 2 Supplementary Protector CB2

CB2 protects the drive motor circuit from overload. If drive motor shorts or fails: check gun liner blockage or kinks, check for jammed wire or binding drive rolls.

Correct problem. Press button to reset supplementary protector.;

- Remove drive roll and apply light coat of oil or grease to drive motor shaft;

- Replace damaged or unreadable labels

- Check, clean, tighten weld terminal;

Rotate knob to allow access to slot. Insert Allen wrench (or stiff piece of wire) into slot, and while depressing spring clip, slide knob off control shaft.

To reinstall, push knob fully onto control shaft.;
