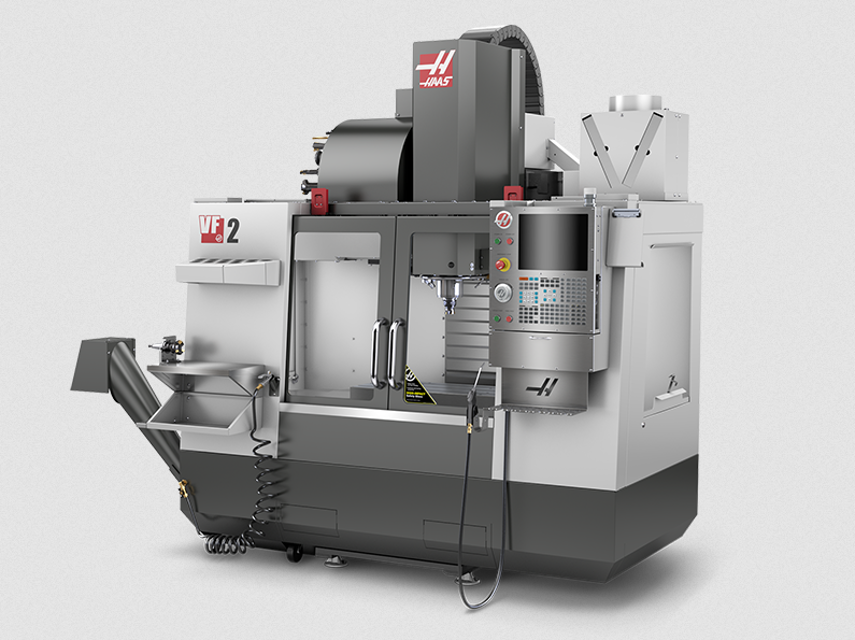

Haas Automation Mill Machine VF-2

Check Through the Spindle Coolant (TSC) filters. Clean or replace element if needed

Check for proper operation of auto drain on filter regulator

On machines with the TSC option, clean the chip basket on the coolant tank

Remove the tank cover and remove any sediment inside the tank. Be careful to disconnect the coolant pump from the controller and POWER OFF the control before working on the coolant tank. Do this MONTHLY for machines without the TSC option

Check air gauge/regulator for 85 psi. For 15K-spindle machines, check spindle air pressure regulator for 20 psi

For machines with the TSC option, place a dab of grease on the V-flange of tools. Do this MONTHLY for machines without the TSC option

Clean exterior surfaces with mild cleaner. DO NOT use solvents

Check the hydraulic counterbalance pressure according to the machines specifications

Check coolant level each eight-hour shift (especially during heavy TSC usage)

Check way lube lubrication tank level

Clean chips from way covers and bottom pan

Wipe spindle taper with a clean cloth rag and apply light oil

1. Check oil level in gear box. For 40 taper spindles: Remove inspection cover beneath spindle head. Add oil slowly from top until oil begins dripping from overflow tube at bottom of sump tank; 2. For 50 taper spindles: Check oil level in sight glass. Add from side of gearbox if necessary

3. Inspect way covers for proper operation and lubricate with light oil, if necessary

4. Place a dab of grease on the outside edge of the guide rails of the tool changer and run through all tools

1.Replace coolant and thoroughly clean the coolant tank

2.Check all hoses and lubrication lines for cracking;

1. Replace the gearbox oil. Drain the oil from the bottom of the gearbox

2. Remove inspection cover beneath spindle head. Add oil slowly from top until oil begins dripping from overflow tube at bottom of sump tank

3. For 50 taper spindles, add oil from the side of the transmission

4. Check oil filter and clean out residue at bottom of filter

5. Check SMTC oil level in sight glass, (see Side Mount Tool Changer Oil Level in this section);
