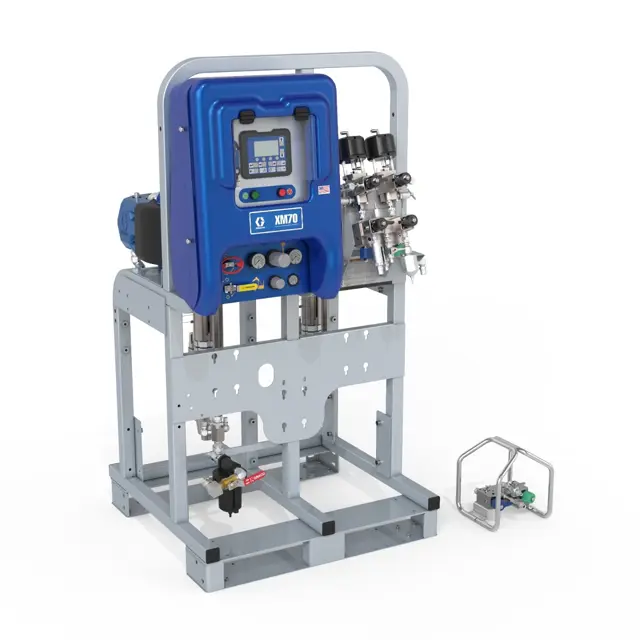

Graco Sprayer XM5J00

Warning: Freezing temperatures can cause damage that may result in the heating fluid leaking into the terminal enclosure. To avoid damage, do not expose the unit to freezing conditions.

Is the heating fluid level within the acceptable range?

Sign off on the heating fluid level check

To prevent air motor failure and possible damage to equipment, always keep the air motor properly lubricated using Air Motor Lubricant.

Enter the current hours of operation

Has the gear reducer oil been changed after the first 100 hours or two weeks of operation?

Upload a photo of the changed gear reducer oil

Sign off on the gear reducer oil change

NOTICE: To prevent air motor failure and possible damage to equipment, always keep the air motor properly lubricated using Air Motor Lubricant.

Is the air motor operating sluggish or inefficiently?

If the air motor is operating sluggish or inefficiently, flush the air motor (see your agitator manual).

Sign off on the air motor flushing

NOTICE: To prevent air motor failure and possible damage to equipment, always keep the air motor properly lubricated using Air Motor Lubricant.

Change the gear reducer oil every 2500 hours, or six months (whichever comes first) of operation under normal conditions. More frequent oil changes are needed under severe operating conditions or in atmospheres containing excessive moisture or abrasives. See your agitator manual for the oil changing procedure.

Every 2500 hours, or six months (whichever comes first) of operation, inspect the bearing block (see your agitator manual).

Sign off on the sprayer maintenance

Butterfly Test: Check for unmixed material

Curing Test: Check curing at various time intervals

Appearance Test: Check for variations in color, gloss, or texture

Pump Test: Verifies that the pumps installed match the pumps selected

Pump Test: Verifies that each pump holds fluid against the pump inlet valve by stalling on the down stroke

Pump Test: Verifies that each pump holds fluid against the pump piston valve and packings by stalling on the upstroke

Pump Test: Verifies that each dosing valve holds fluid, and that there are no external leaks between the pump and dosing valve
