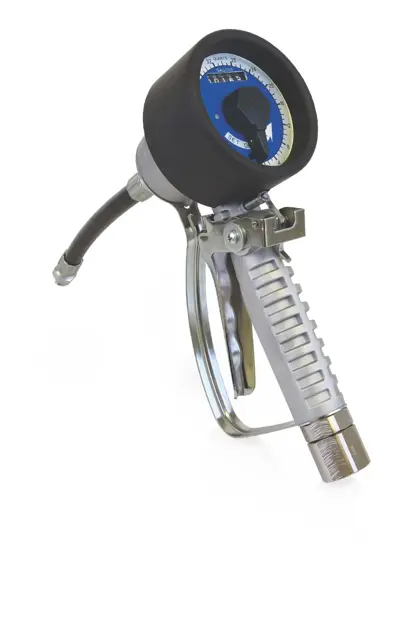

Graco Preset Meter 24U948

NOTE: Do not disassemble the fluid and counting sections simultaneously. Confirm that the fluid section is fully assembled before removing the counting section.

Follow Pressure Relief Procedure: This equipment stays pressurized until pressure is manually relieved. To help prevent serious injury from pressurized fluid, such as skin injection, splashing fluid and moving parts, follow the Pressure Relief Procedure when you stop spraying and before cleaning, checking, or servicing the equipment.

Turn off the power supply to the pump, or close the upstream master air valve E.

Open all fluid shut off valves J and L in the system.

Trigger the meter N into a waste container to relieve pressure.

Open the fluid drain valves and leave open until ready to pressurize the system.

Close the fluid shut off valve L.

Remove the nozzle 101 and the extension 102.

Turn the meter cap 17 counter-clockwise to unscrew and remove it from the meter housing.

NOTE: Do not disassemble the fluid and counting sections simultaneously. Confirm that the fluid section is fully assembled before removing the counting section.

1. Follow Pressure Relief Procedure, page 7

2. Remove the cover 44 and the small retaining ring 43 See Fig. 26

3. Remove the needle pointer 41, the springs 39, and the pins 40 See Fig. 27

4. Remove the large retaining clip 38, and then the face plate panel 37 See Fig. 28

5. Use a 2 mm hex key to remove the gear setscrew 33 Remove the gears 32, 34 See Fig. 29

6. Remove the entire counter assembly 31 See Fig. 30
