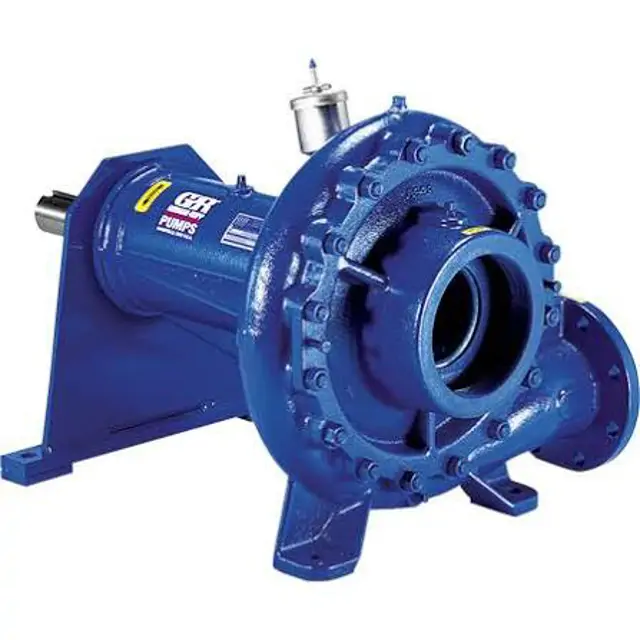

Gorman-Rupp Pump 62E32-B

Lubrication — Oil Lubricated Bearings

Check the oil level at the oil cup

Remove the air vent if lubrication is required

Add SAE No. 30 non-detergent oil through the hole if lubrication is required

Lubrication — Oil Lubricated Bearings

Refill the bearing housing with clean oil

Is the pump operated continuously or in an environment with rapid temperature change?

If yes, describe the frequency of oil changes needed

Refer to special instructions in Body Cover Replacement if replacement is needed.

Install a new body cover gasket.

Use a soft-faced mallet to tap the body cover into place on the dowel pins.

Secure the body cover with the attaching hardware.

Ensure the dowel pins are fully seated into the body cover.

Return the pump to the factory if body cover replacement is required.

Install a new body cover gasket.

Shaft and Bearing Removal and Disassembly

Is there evidence of wear or damage on the shaft and bearings?

Place a drip pan under the bearing housing before removing the shaft and bearings.

Remove the oil cup and drain the bearing cavity if equipped with oil-lubricated bearings.

Disengage the attaching hardware and remove components

Use an arbor or hydraulic press to remove the oil seal from the bearing cap.

Tap the shaft and assembled bearings from the bearing housing using a block of wood.

Remove the oil seal from the bearing housing using a suitable tool.

Clean and inspect the bearings in place.

Inspect the impeller for cracks or wear

Does the impeller have wear rings?

Is the impeller cracked or badly worn?

Replace the impeller if it is cracked, badly worn, or has wear rings that require replacement

Slide the impeller onto the shaft

Secure the impeller with the tab washer and impeller nut
