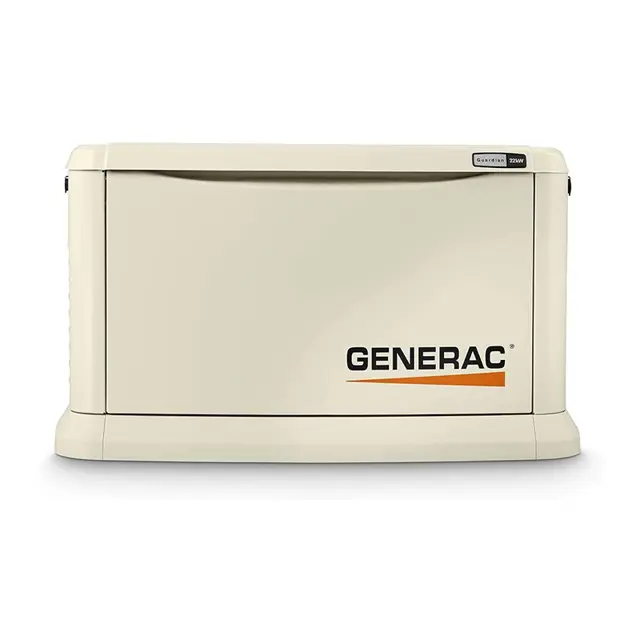

GENERAC Air-Cooled Generator GUARDIAN 22K W

Press the OFF button on the control panel to stop the generator. Then lift the lid and remove the front panel

Remove the cover clips (A) and air cleaner cover

Remove the old air filter element (C) and discard

Thoroughly clean the air cleaner enclosure of any dust or debris

Install a new air filter element

Install the air cleaner cover and fasten the cover clips

Verify that the air inlet duct (D) is properly connected to the air cleaner cover

Press the AUTO button on the control panel to return the unit to AUTO mode

Sign off on the air cleaner service

DANGER: Explosion and fire. Fuel and vapors are extremely flammable and explosive. No leakage of fuel is permitted. Keep fire and spark away. Failure to do so will result in death or serious injury.

All products are tested at the factory before shipping to ensure the performance and integrity of the fuel system.

Perform a final fuel system leak test after generator installation. The test will identify possible leaks at all connection points (A).

It is best practice to perform a fuel system leak test during normally-scheduled maintenance.

Check for leaks by spraying all connection points with a non-corrosive gas leak detection fluid. The solution should not be blown away or form bubbles.

Attention After Submersion: DO NOT start or operate the generator if it has been submerged in water. Have an IASD thoroughly clean, dry, and inspect the generator following any submersion in water. If the structure (home) has been flooded, it should be inspected by a certified electrician to verify there won’t be any electrical problems during generator operation or when utility power is returned.

Regular scheduled maintenance should be conducted to perform a visual inspection of the unit for corrosion. Inspect all metal components of the generator, including the base frame, brackets, alternator can, the entire fuel system (inside and outside of the generator), and fastener locations. If there is corrosion found on generator components (e.g. regulator, engine/alternator mounts, fuel plenum, etc.), replace parts as necessary.

Periodically wash and wax the enclosure using automotive type products. Do not spray the unit with a hose or power washer. Use warm, soapy water and a soft cloth. Frequent washing is recommended in salt water/coastal areas.

Spray engine linkages with a light oil such as WD-40.

Warning: Follow local codes and guidelines for cleaning the sediment trap

Turn the generator fuel supply off

Use a clean-out tool to remove accumulated moisture and particles from the cap and body (B)

Wipe the inside of each component with a clean, dry, lint-free cloth

Check enclosure louvers for dirt and debris

Remove any shrubs or tall grasses within 3 ft of the intake and discharge louvers

Clean any debris inside the enclosure

Check lines and connections for fuel or oil leaks

WARNING: Risk of burns. Allow engine to cool before draining oil or coolant. Failure to do so could result in death or serious injury

CAUTION: Engine damage. Verify proper type and quantity of engine oil prior to starting engine. Failure to do so could result in engine damage

The oil level should be checked daily when power outages necessitate running the generator for extended periods.

Run the generator for a cool-down period of approximately one minute

WARNING: Explosion. Do not dispose of batteries in a fire. Batteries are explosive. Electrolyte solution can cause burns and blindness. If electrolyte contacts skin or eyes, flush with water and seek immediate medical attention.

WARNING: Explosion. Batteries emit explosive gases while charging. Keep fire and spark away. Wear protective gear when working with batteries. Failure to do so could result in death or serious injury.

WARNING: Electrical shock. Disconnect battery ground terminal before working on battery or battery wires. Failure to do so could result in death or serious injury.

WARNING: Risk of burns. Batteries contain sulfuric acid and can cause severe chemical burns. Wear protective gear when working with batteries. Failure to do so could result in death or serious injury.

WARNING: Environmental Hazard. Always recycle batteries at an official recycling center in accordance with all local laws and regulations. Failure to do so could result in environmental damage, death or serious injury.

Always recycle batteries in accordance with local laws and regulations. Contact your local solid waste collection site or recycling facility to obtain information on local recycling processes.

Strictly observe the following precautions when working on batteries.

Check battery condition, electrolyte level, and state of charge every year, every 2 years or 200 hours and every 4 years or 400 hours.

Lift the lid to gain access to the controller and press the OFF button to shut down the generator, then remove the front panel.
