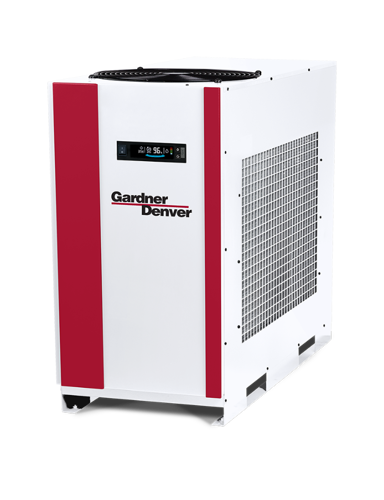

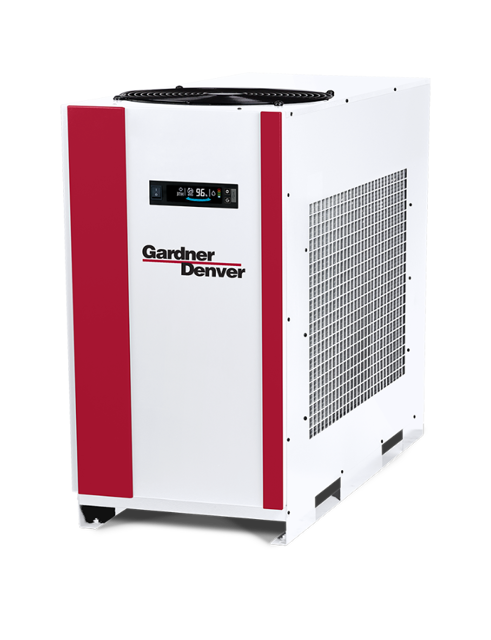

Gardner Denver Refrigerated Type Compressed Air Dryer RPC75A1

Need answers fast?
Explore the manual using AI.

View PDF Manual

Explore Maintenance Plans

The Gardner Denver Refrigerated Type Compressed Air Dryer RPC75A1 is designed to efficiently remove moisture from compressed air systems, ensuring optimal performance and longevity. This high-quality dryer is essential for maintaining air quality in industrial applications, providing reliable operation and energy efficiency.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Gardner Denver Refrigerated Type Compressed Air Dryer RPC75A1

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Gardner Denver Refrigerated Type Compressed Air Dryer RPC75A1

Create an account to install this asset package.

Maintenance Plans for Gardner Denver Refrigerated Type Compressed Air Dryer Model RPC75A1

Integrate maintenance plans directly into your work orders in MaintainX.

1 Monthly Air Dryer Inspection

The RPC Series Dryer requires little maintenance for satisfactory operation. Good dryer performance can be expected if the following routine maintenance steps are taken.

For continued good performance of your refrigerated dryer, all refrigeration system maintenance should be performed by a competent refrigeration mechanic.

NOTE: Before corrective maintenance is done during the warranty period, call your local distributor and proceed according to instructions. Refer to the warranty for limits of your coverage.

Inspect the condenser coils monthly.

If necessary, remove dirt or other particles with compressed air from an OSHA-approved air nozzle that limits its discharge pressure to 30 psig (2.1 kgf/cm2).

Run this procedure

1 Daily Air Dryer Check

The RPC Series Dryer requires little maintenance for satisfactory operation. Good dryer performance can be expected if the following routine maintenance steps are taken.

For continued good performance of your refrigerated dryer, all refrigeration system maintenance should be performed by a competent refrigeration mechanic.

NOTE: Before corrective maintenance is done during the warranty period, call your local distributor and proceed according to instructions. Refer to the warranty for limits of your coverage.

Check the operation of the no loss drain valve at least once daily.

See the Field Service Guide for remedies to drain valve malfunctions.

Run this procedure

1 Yearly Air Dryer Maintenance

The RPC Series Dryer requires little maintenance for satisfactory operation. Good dryer performance can be expected if the following routine maintenance steps are taken.

For continued good performance of your refrigerated dryer, all refrigeration system maintenance should be performed by a competent refrigeration mechanic.

NOTE: Before corrective maintenance is done during the warranty period, call your local distributor and proceed according to instructions. Refer to the warranty for limits of your coverage.

Replace the drain service unit

Replace prefilter and afterfilter elements for units purchased with mounted filtration

Maintenance kits available for annual maintenance

Sign off on the air dryer maintenance

Run this procedure
