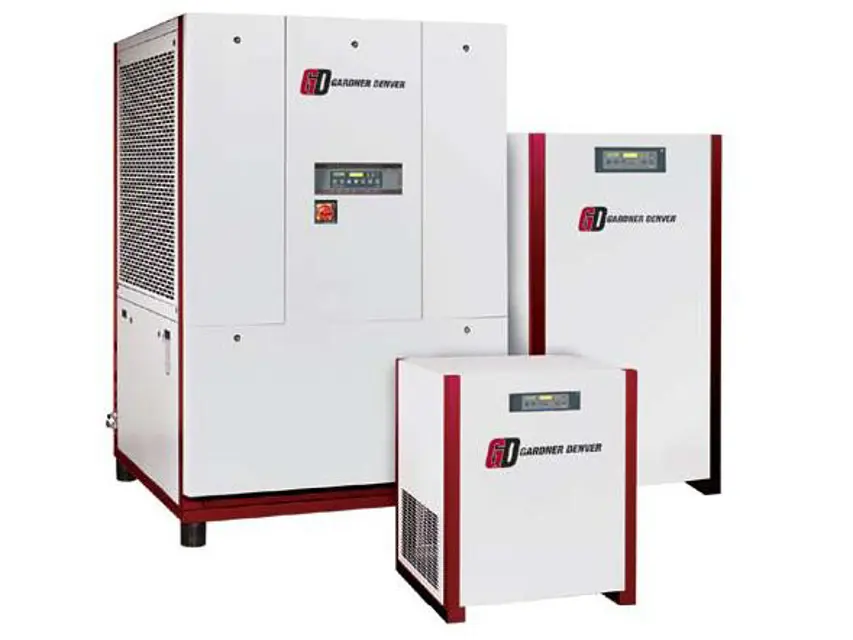

Gardner Denver Refrigerated Dryer 9VXRD2500

1. Air-cooled - clean off accumulated dust and dirt monthly. - A factory mounted blow gun is provided for this pur- pose.

2. Water-cooled - clean strainer monthly, more often if required.

- Shut off water, remove small plug to relieve pressure, then remove large plug to remove strainer.

A. When to replace the Separator/Filters

Pressure drop across dryer is excessive or it's been a year since last replacement

Pressure drop across the dryer exceeds 10 psi (0.7 bar)

B. Description of the Separator/Filter Assembly

List of Separator/Filter Assembly components

C. Replacement of the Separator/Filters

CAUTION! Depressurize the unit before servicing. Failure to do this may result in injury.

Check separator daily to be sure automatic drain is discharging.

NOTE: Units with two stage filtration have two sets of drains.

Blow down separator weekly by pushing test button on control panel.

Sign off on the daily dryer maintenance
