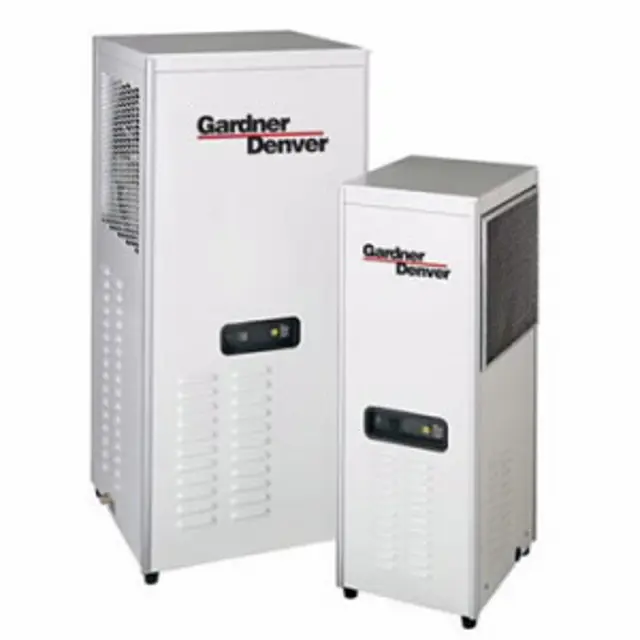

The Gardner Denver High Inlet Temperature Refrigerated Compressed Air Dryer RHT020 is designed for efficient moisture removal in compressed air systems. This model ensures optimal performance and reliability, making it ideal for industrial applications requiring high-quality air treatment solutions.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Gardner Denver High Inlet Temperature Refrigerated Compressed Air Dryers RHT020

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Gardner Denver High Inlet Temperature Refrigerated Compressed Air Dryers RHT020

Create an account to install this asset package.

Maintenance Plans for Gardner Denver High Inlet Temperature Refrigerated Compressed Air Dryers Model RHT020

Integrate maintenance plans directly into your work orders in MaintainX.

1 Yearly Separator/Filter Element Replacement

Replace separator/filter element yearly or more often if pressure drop across the dryer is excessive.

A. Shut-off compressed air supply to the dryer and depressurize.

B. Remove top panel.

C. Remove two screws holding side panel and remove side panel by sliding upwards.

D. Disconnect drain tube from bulkhead fitting in cabinet base. To remove, press the plastic collar in, toward the fitting, while pulling the tube out of the fitting.

E. Remove bowl - push bowl up, turn bowl 1/8th turn to your left, and pull straight down.

F. Clean filter bowl.

G. Replace element.

1. Replacing complete element

Run this procedure

1 Monthly Ambient Air Filter Cleaning

CAUTION! DRYER IS A PRESSURE CONTAINING DEVICE. DEPRESSURIZE BEFORE SERVICING.

• Ambient air filter - Clean accumulated dust and dirt from ambient air filter monthly or more often if air flow across the condenser is impeded.

A. Remove top panel.

B. Remove ambient air filter by sliding upwards.

C. Wash with soap and water and allow to dry before reinstalling.

NOTE: Do not use solvents to clean ambient air filter.

D. Reinstall filter and top panel.;

Run this procedure

1 Monthly Inlet Strainer Cleaning

CAUTION! DRYER IS A PRESSURE CONTAINING DEVICE. DEPRESSURIZE BEFORE SERVICING.

Inlet strainer - clean inlet strainer monthly or more often if rapid clogging occurs.

Shut-off compressed air supply to the strainer and depressurize.

Remove screen and clean or replace.

Reinstall.

Sign off on the inlet strainer cleaning

Run this procedure

1 Yearly Drain Mechanism Replacement

Check daily to be sure automatic drain is discharging

Replace drain mechanism yearly

Shut-off compressed air supply to the dryer and depressurize

Remove top panel

Remove two screws holding side panel then remove side panel by sliding upwards

Disconnect drain tube from bulkhead fitting in cabinet base. To remove, press the plastic collar in, toward the fitting, while pulling the tube out of the fitting

Remove bowl - push bowl up, turn 1/8th turn to your left, and pull bowl straight down

Remove drain tube fitting from bottom of bowl

Remove old drain mechanism by turning knurled fitting to the right (clockwise) and remove

Run this procedure
