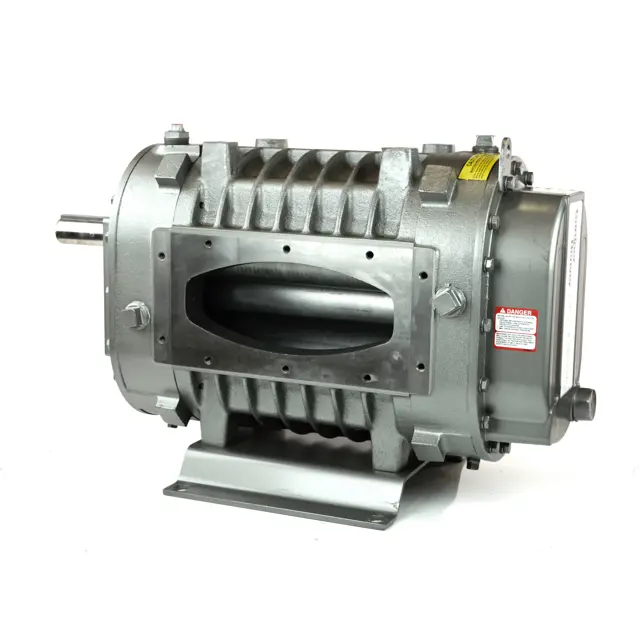

Gardner Denver Blower GGDDADA

Warning: This procedure requires trained personnel with PPE!

For 45 series models, the oil fill port is located on the top of the blower at the driveshaft end.

The two oil sumps are connected by a passageway through the housing.

Add oil until the level stabilizes at the center of the sightglass(es).

Oil level at the sight glass must be established when the blower is not operating.

Add fresh oil as required to maintain proper level.

Warning: Do not overfill as this will tend to cause excessive heating of the gears, oil to leak through the vent holes, and may damage the unit.

AEON PD Synthetic Lubricant should be drained after 6000 hours of operation. Re-fill with fresh AEON PD oil.

Recommended service intervals are for normal blower operating conditions. Severe operating conditions may warrant more frequent oil changes.

WARNING! Do not overfill as this will tend to cause excessive heating of the gears, oil to leak through the vent holes, and may damage the unit.

NOTICE! Flush the oil whenever a change is made from one type of oil to another.

WARNING! Do not plug vent holes or oil sumps may pressurize causing loss of oil, excessive heat and serious damage to the machine.

Check if the oil fill port is located on the top of the blower at the driveshaft end.

Check if the two oil sumps are connected by a passageway through the housing.

Add oil until the level stabilizes at the center of the sightglass(es).

Oil level at the sight glass must be established when the blower is not operating.

Add fresh oil as required to maintain proper level.
