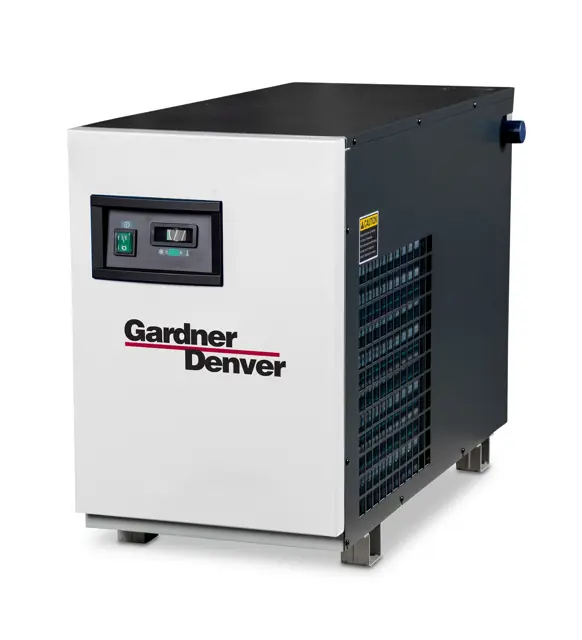

The Gardner Denver RHP2000 is a high-performance air dryer designed for industrial applications. This reliable asset efficiently removes moisture from compressed air systems, ensuring optimal performance and longevity. Regular maintenance and quality spare parts are essential for maximizing its operational efficiency.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Gardner Denver Air Dryer RHP2000
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Gardner Denver Air Dryer RHP2000
Create an account to install this asset package.
Maintenance Plans for Gardner Denver Air Dryer Model RHP2000
Integrate maintenance plans directly into your work orders in MaintainX.
1 Monthly Condenser Coil Maintenance
1. Air-cooled - clean off accumulated dust and dirt monthly or as necessary in dirty environments.
2. Water-cooled - clean strainer monthly, more often if required. Shut off water, remove small plug to relieve pressure, then remove large plug to remove strainer. Clean strainer and replace.
Also check separator daily to be sure automatic drain is discharging and blow down separator weekly by pushing test button on control panel.;
1 Yearly Moisture Separator/Oil Removal Filter Replacement
WARNING! THIS FILTER IS A PRESSURE CONTAINING DEVICE. DEPRESSURIZE BEFORE SERVICING.
Is the dryer isolated? (close inlet and outlet valves if installed) or air supply shut off?
Front panel removed and filter depressurized by slowly opening manual drain by-pass valve?
Drain line disconnected from bottom of separator?
Filter housing disassembled?
Filter bowl removed and cleaned?
Old filter element and small O-ring discarded?
New filter element and bowl with new O-rings properly seated to head or bowl (dependent upon dryer size)?
Drain line connected and panel replaced?
Parts for Gardner Denver Air Dryer RHP2000
Access the parts list for your equipment in MaintainX.
Fan Motor
G4010925
Cooling Water Regulating Valve
G4006391
Cooling Water Strainer
G4009635
Suction Filter
G4006414
Temperature Sensor
G3210926
Fan Motor
G4010925
Cooling Water Regulating Valve
G4006391
Cooling Water Strainer
G4009635
Suction Filter
G4006414
Temperature Sensor
G3210926
Fan Motor
G4010925
Cooling Water Regulating Valve
G4006391
Cooling Water Strainer
G4009635
Suction Filter
G4006414
Temperature Sensor
G3210926
