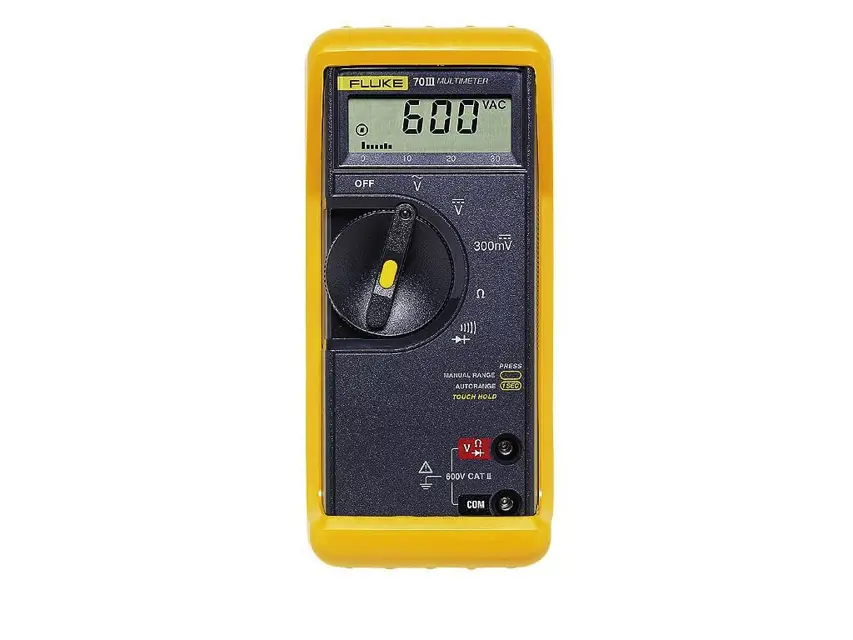

Fluke Multimeter 70

Create an account to install this asset package.

Maintenance Plans for Fluke Multimeter Model 70

Integrate maintenance plans directly into your work orders in MaintainX.

Multimeter Cleaning

Warning: Do not use aromatic hydrocarbons or chlorinated solvents for cleaning.

Do not allow the LCD to get wet. Remove the display assembly before washing the pca.

Do not use detergent of any kind for cleaning the pca.

Do not remove lubricants from the switch when cleaning the pca.

Clean the instrument case with a mild detergent and water.

The pca may be washed with isopropyl alcohol or deionized water and a soft brush.

Remove the display assembly and fuses before washing, and avoid washing the switch if possible.

Dry the pca with clean dry air at low pressure, then bake it at 50°C for 24 hours.

Sign off on the multimeter cleaning

Run this procedure

Multimeter Calibration

Set the DC Voltage Calibrator to zero, and set the UUT to the VDC function.

Remove the case top cover as previously described.

Connect the DC Voltage Calibrator to the and COM input terminals of the UUT.

Set the DC Voltage Calibrator for an output of +3.000V dc

Adjust R8 for a display reading of +3.000V dc ±.001V

Sign off on the calibration

Run this procedure

1 Yearly Multimeter Check

Performance Tests

Instrument Type - Multi-Product Calibrator

Recommended Model - Fluke 5500A

Initial Procedure

UUT stabilized to room temperature 23°C ± 5°C (73°F ± 9°F)

Fuses and battery checked and replaced if necessary

Fuses installed in accordance with the rating shown on the back of the meter

Sign off on the multimeter check

Run this procedure

Multimeter Check

Display Test (70/73 Series III below s/n 80810247 only)

To test the display, turn the UUT on and check whether all display segments come on.

Display Test (21/23/75/77 Series III only)

To test the display, press the range and hold buttons while turning the UUT on and check whether all display segments come on.

DC Voltage Test

Connect the ground/common/low side of the DC calibrator to COM on the UUT.

1. Set the UUT function switch to VDC, and connect the DC Voltage Calibrator output to the v and COM input terminals of the UUT.

2. Referring to Table 3, set the DC Voltage Calibrator for the output indicated in steps 1 through 5 only. Verify that the UUT display reading is within the limits shown.

3. Set the DC Voltage Calibrator for an output of +300 mV, and switch the UUT to the 300 mV function.

Run this procedure
