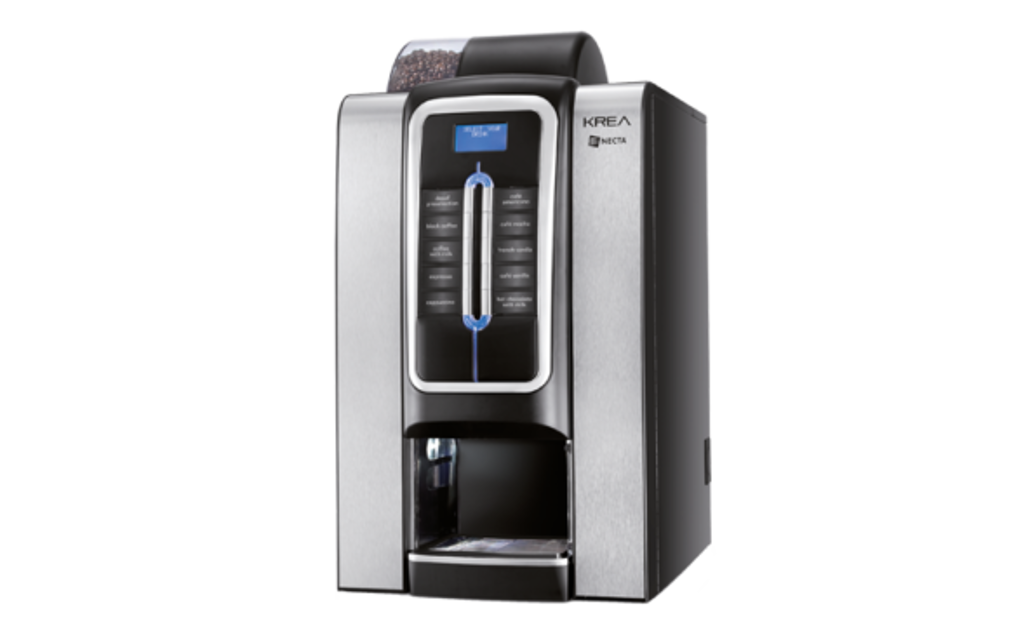

Evoca Espresso Freshbrew Krea

Unscrew the side screw intended to fasten the key

Rotate the upper piston upwards

Remove and replace the upper seal

Filter Removal and Repositioning

Unscrew the fixing nut to remove the upper filter

Reposition the filter support making sure that the flat surface is facing upwards

Remove and disassemble all components in contact with food products

Mechanically remove all residues and visible films using brushes

Soak components in sterilising solution for at least 20 minutes

Clean internal surfaces of the machine with sterilising solution

Rinse well and reassemble the components

Sterilisation with Components Installed

Perform sterilising operations with components installed as per 'Sterilisation of the mixers and of the food products circuits' chapter

Manually bring the unit to the discharge position with the lower piston in high position.

Unscrew the central fixing screw for removing the filter.

Press on the end of the piston stem guide for obtaining an extra run of the lower piston.

Pull with a small screwdriver for sliding the lower piston out from the piston stem being careful not to damage the piston or the sealing elements.

Remove and replace the lower seal.

Check if the new filter is securely in place.

Verify that the lower seal is properly installed and undamaged.

Is descaling required based on water hardness and usage?

Remove the boiler from the machine for descaling

Use non-toxic and non-aggressive biodegradable products for descaling

Rinse the boiler thoroughly before reassembling components

Ensure the following when reassembling

Espresso Boiler Thermal Protection

Has the thermal protection intervened?

Disconnect the espresso coffee outlet nozzle by rotating it 90° and pulling it out

Disconnect the fresh brew coffee outlet nozzle by rotating it 90° and pulling it out

Move the unit end stop lever to the horizontal position
