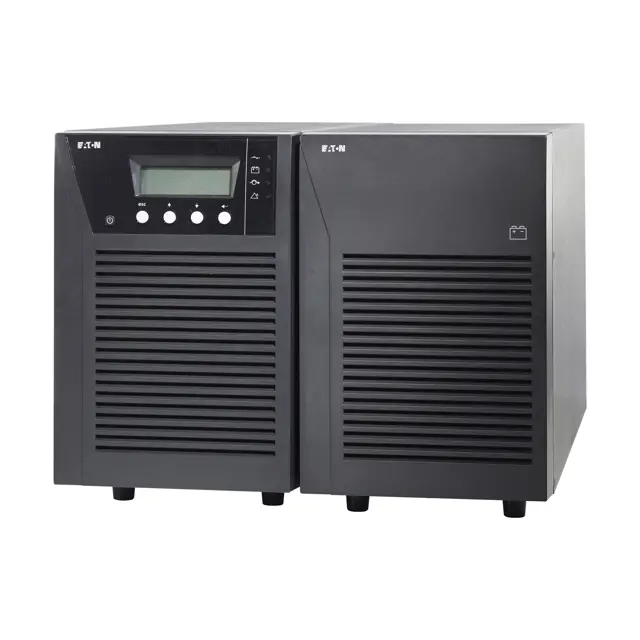

Eaton Uninterruptible Power System PW9130L2000T-XL

Warning: Ensure the UPS is plugged into a power outlet for 48 hours to charge the batteries

Press any button to activate the menu option

Select CONTROL then START BATTERY TEST

The UPS starts a battery test if the batteries are fully charged, the UPS is in Normal mode with no active alarms, and the bypass voltage is acceptable

During the battery test, the UPS transfers to Battery mode and discharges the batteries for 25 seconds. The front panel displays “Battery test running” and the percentage of the test completed

Warning: Only trained personnel should perform this procedure

Is the UPS connected to utility power?

Enter the battery recharge date from the shipping carton label

Sign off on the battery service

Remove the UPS right front cover

Disconnect the internal battery connector

Grasp an edge of the battery cover plate and pull it forward gently. Remove and retain the battery cover plate

Carefully pull the handle on the battery tray and slide the battery package slowly out onto a flat, stable surface; use two hands to support the battery package

Slide the new battery package into the cabinet. Push the battery package in firmly

Replace the battery cover plate onto the screw mounts, threading the battery connector through the access slot

Reconnect the internal battery connector. Connect red to red, and black to black. Press the two parts tightly together to ensure a proper connection

Replace the UPS right front cover. To replace the cover, verify that the ribbon cable is protected and (if EBMs are installed) the EBM cable is routed through the knockout on the bottom of the cover. Slide the cover to the left until it aligns with the left front cover. Reinstall the two screws on the right side of the right front cover

Sign off on the battery replacement
