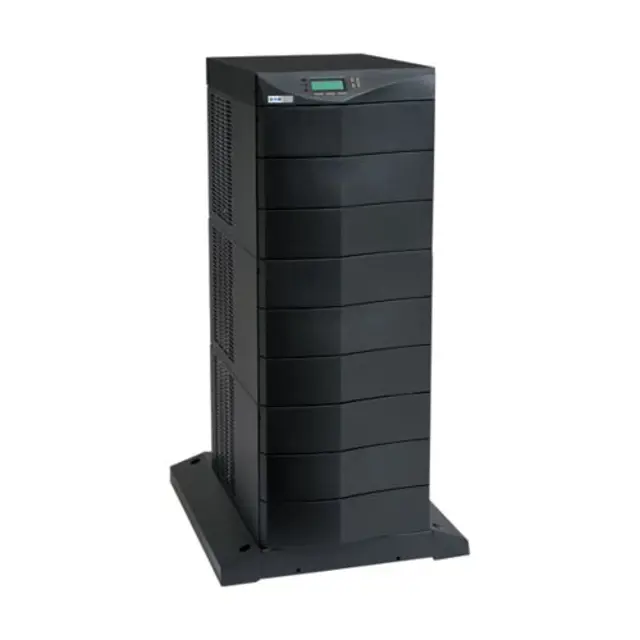

Eaton Uninterruptible Power System 9170+ (9 kVA)

Warning: Handle battery modules with care!

Front covers removed from battery modules

Battery module handle grasped and latch release pressed down

Module pulled out to the secondary stop

Secondary stop release pressed down and module removed from cabinet

Second battery module removed in a similar manner

Labeling details for the original modules

Replacement pair of battery modules installed

All desired battery modules replaced

Check operating environment for clean, cool, dry conditions

Check and tighten all connections

Upload the alarm and inverter logs

Check the displayed UPS readings against actual measurements and recalibrate if necessary

Upload the values of the parameters in the System Status Menu online and on battery

Warning: Handle the modules with care to avoid damaging connectors or internal circuitry.

Thumbscrew on the module handle loosened

Module handle pulled down and module disconnected

Module supported with two hands

Original and replacement modules treated with care

Serial number of the replacement module
