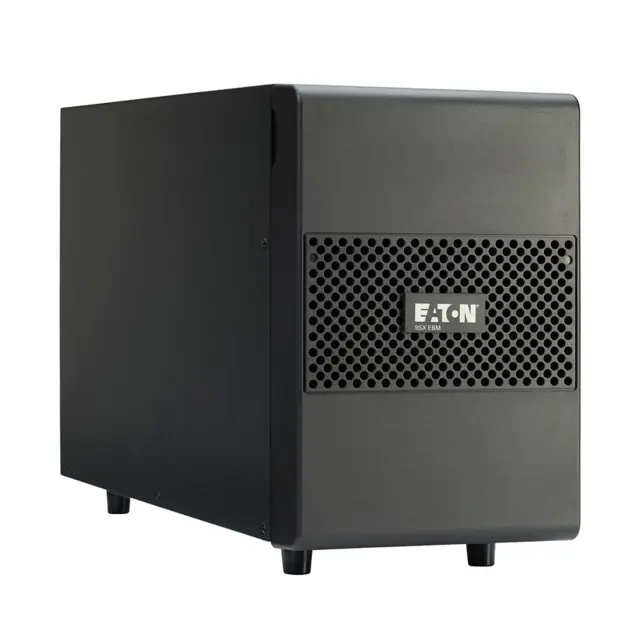

The Eaton Uninterruptible Power Supply 9SXEBM96 is a reliable power protection solution designed to ensure uninterrupted operation for critical systems. With advanced features and robust performance, this UPS model safeguards sensitive equipment from power disturbances, making it ideal for industrial applications.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Eaton Uninterruptible Power Supply 9SXEBM96

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Eaton Uninterruptible Power Supply 9SXEBM96

Create an account to install this asset package.

Maintenance Plans for Eaton Uninterruptible Power Supply Model 9SXEBM96

Integrate maintenance plans directly into your work orders in MaintainX.

4 Yearly EBM Replacement

Warning: The EBM is heavy, handling requires a minimum of 2 people.

Unplugged the EBM power cable and battery detection cable from the UPS

Unplugged the EBM power cable and battery detection cable from each additional EBM

Replaced the EBM(s)

Info: A small amount of arcing may occur when connecting an EBM to the UPS. This is normal and will not harm personnel. Insert the EBM cable into the UPS battery connector quickly and firmly.

Plugged the EBM cable(s) into the battery connector(s)

Verified that the EBM connections are tight and that adequate bend radius and strain relief exist for each cable

Connected the battery detection cable(s) to the connector of the UPS and of the EBM(s)

Testing new batteries

Run this procedure

4 Yearly Battery Replacement

Warning: Servicing should be performed by qualified service personnel knowledgeable of batteries and required precautions. Keep unauthorized personnel away from batteries.

Warning: Batteries can present a risk of electrical shock or burn from high short circuit current. Observe the following precautions: Remove watches, rings, or other metal objects. Use tools with insulated handles. Do not lay tools or metal parts on top of batteries. Wear rubber gloves and boots.

Warning: When replacing batteries, replace with the same type and number of batteries or battery packs. Contact your service representative to order new batteries.

Warning: Proper disposal of batteries is required. Refer to your local codes for disposal requirements.

Warning: Never dispose of batteries in a fire. Batteries may explode when exposed to flame.

Warning: Do not open or mutilate the battery or batteries. Released electrolyte is harmful to the skin and eyes and may be extremely toxic.

Warning: Determine if the battery is inadvertently grounded. If inadvertently grounded, remove source from ground. Contact with any part of a grounded battery can result in electrical shock. The likelihood of such shock can be reduced if such grounds are removed during installation and maintenance (applicable to equipment and remote battery supplies not having a grounded supply circuit).

Warning: ELECTRIC ENERGY HAZARD. Do not attempt to alter any battery wiring or connectors. Attempting to alter wiring can cause injury.

Warning: Disconnect charging source prior to connecting or disconnecting battery terminals.

Run this procedure
