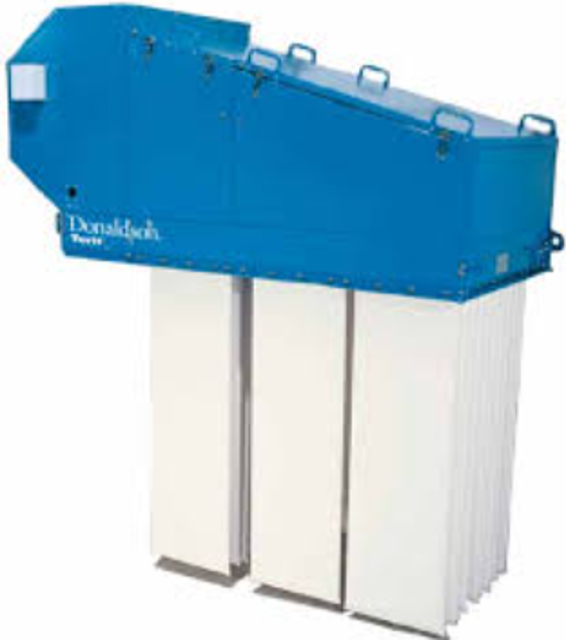

Donaldson Torit Dust Collector DLMV 10/10

Isolate the compressed-air supply and remove and clean the filter.

Isolate the compressed air supply, remove the drain plug and air inlet connections and clean thoroughly.

Remove one or two filter bags and inspect for general condition. Replace if necessary.

Check that jet tubes are clean and the orifices are clear.;

Physical condition of the collector is good?

Compressed air components are in good condition?

Report any issues with compressed air components

Enter the pressure drop across filters

Report any abnormal changes in pressure drop

Exhaust is functioning properly?

Dust disposal is functioning properly?

Proper solenoid and diaphragm valve operation

Door seals in good condition and contact

Clean-air plenum free of dust accumulation

Report any issues found during the check

Sign off on the dust collector check

Check the compressed air components

Drain moisture following the manufacturer’s instructions

Is the compressed-air supply ON?

Check the cleaning valves for leaks

Check the solenoid valves for leaks

Replace components as necessary

Remove nylon tubing by pushing inward on the fitting collar and withdraw the tubing.

Remove the hex-head set screws and washers securing the valve bonnet.

Check that the bleed-hole pin is not blocked.

Place the diaphragm over the bleed hole pin with the nylon sealing washer inside the valve throat.

Position spring, if equipped, inside the bonnet recess.

Replace valve bonnet with the spring over the diaphragm disk shoulder and bonnet over the bleed hole pin. Secure using the hex-head set screws and washers removed in Step 2.

Reconnect nylon tubing and secure.

Sign off on the diaphragm replacement
