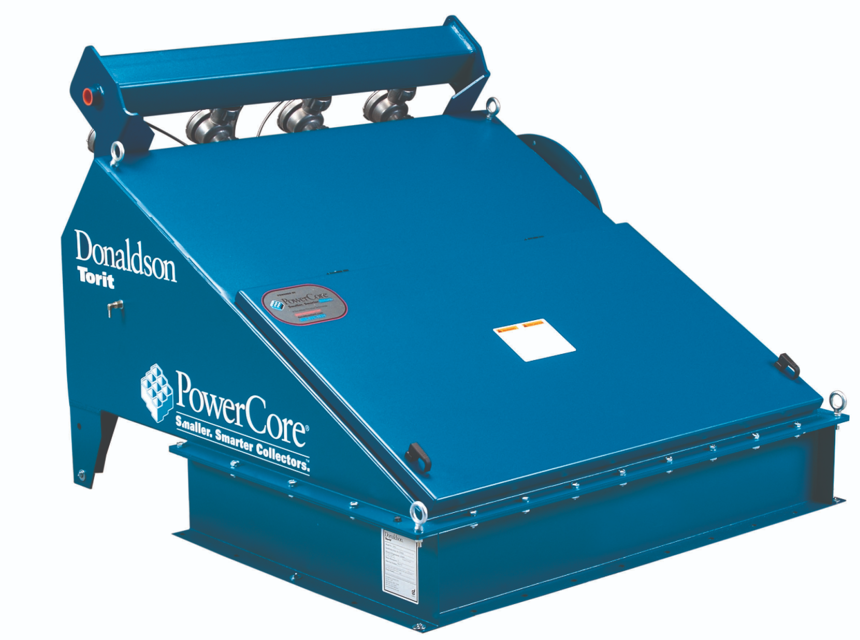

Donaldson Torit Dust Collector CPV-3

Create an account to install this asset package.

Maintenance Plans for Donaldson Torit Dust Collector Model CPV-3

Integrate maintenance plans directly into your work orders in MaintainX.

Filter Removal

Turn power to unit OFF

Open access door by releasing locking mechanism. Swing door fully open. Prevent door from closing by engaging door locking mechanism (except CPV-1)

Turn filter pack retention wing nuts counterclockwise and remove filter pack retainer. Removal of back row of filter packs first is recommended

Remove filter pack by lifting straight up

Repeat steps 1-4 to remove remaining filter packs

Run this procedure

Compressed Air Component Maintenance

NOTICE: Do not set compressed-air pressure above 100-psig. Component damage can occur.

Check the compressed air components

Replace compressed-air filter

Drain moisture following the manufacturer's instructions

Is the compressed-air supply ON?

Check the cleaning valves for leaks

Check the solenoid valves for leaks

Check the tubing for leaks

Replace as necessary

Run this procedure

Filter Cleaning

The Delta P Plus Control offers three filter cleaning options.

1. Differential Pressure Cleaning (DFF) - When the pressure drop across the filters reaches the control's High setpoint, the control closes an output relay allowing a sequential timer to trigger the cleaning valves. When the control senses that the pressure drop has decreased to the Low setpoint, the relay opens and the cleaning cycle stops. This sequence continues as long as the collector is in use, maintaining the pressure drop within a narrow range.

2. Downtime Cleaning (DTC) - The Delta P Plus Controller monitors the collection system. When the pressure drop exceeds the Low Pressure Off set point and then approaches zero again, the Delta P Plus Controller runs a delay timer to allow the blower to come to a stop and then engages the cleaning mechanism for a preselected time.

3. Combined Differential and Down Time Cleaning (ALL) - The Delta P Plus Control combines the two functions described above; maintaining the pressure drop in a narrow band and down time cleaning the filters when the collector is shut down. The down time cleaning function can be toggled On or Off from the keyboard.;

Run this procedure

Dust Collector Check

Physical Condition Check

Physical condition of the collector

Condition of compressed air components

Condition of cleaning valves, solenoid valves, and tubing

Pressure Drop Check

Pressure drop across filters

Exhaust and Dust Disposal Check

Monitor exhaust

Monitor dust disposal

Run this procedure
