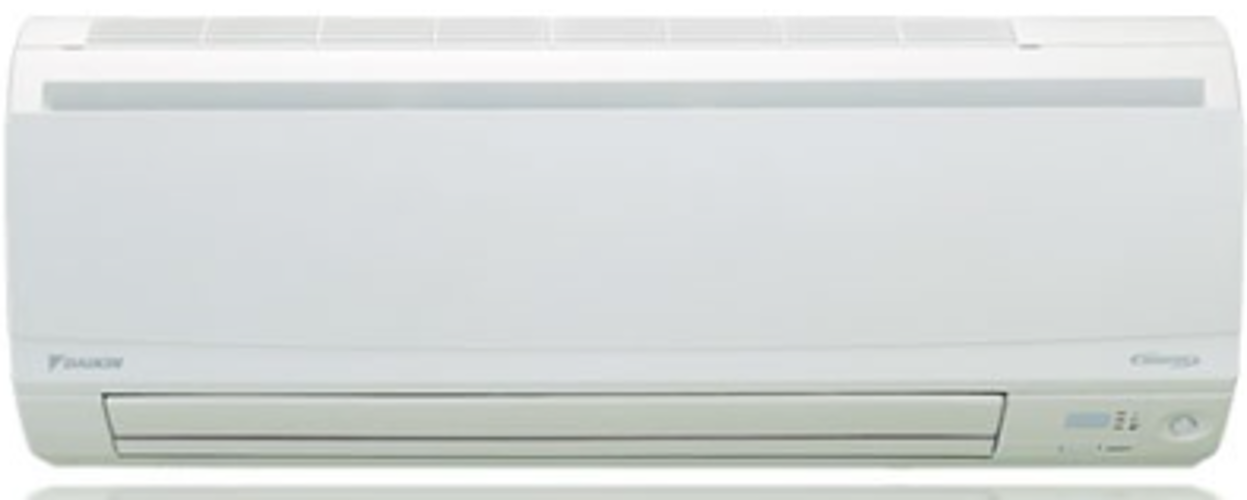

Daikin Wall Mounted Type Indoor Unit FTXS50J2V1B

Create an account to install this asset package.

Maintenance Plans for Daikin Wall Mounted Type Indoor Unit Model FTXS50J2V1B

Integrate maintenance plans directly into your work orders in MaintainX.

Thermistor Resistance Check

Warning: Disconnect the connectors of the thermistors from the PCB before proceeding

Thermistors disconnected from the PCB

Measure the resistance of each thermistor

Select the model of the thermistor

Upload a photo of the tester reading

Sign off on the thermistor resistance check

Run this procedure

Power Supply Waveform Check

Warning: This procedure should be performed by a trained technician

Measure the power supply waveform between No. 1 and No. 2 on the terminal board

Is the power supply waveform a sine wave?

Upload a photo of the waveform

Is there waveform disturbance near the zero cross?

Technician's signature

Run this procedure

Hall IC Check

Check the connector connection

Output voltage between pins 1 and 3

Generation of 3 pulses between pins 2 and 3 when the fan motor is operating

If NG in step 1, what is defective?

If NG in step 2, what is defective?

If OK in both steps 1 and 2, what to replace?

Sign off on the Hall IC Check

Run this procedure

Electronic Expansion Valve Check

Conduct the followings to check the electronic expansion valve (EV).

1. Check to see if the EV connector is correctly inserted in the PCB. Match the EV unit number and the connector number.

2. Turn the power off and on again, and check to see if all the EVs generate latching sound.

3. If any of the EVs does not generate latching sound in the above step 2, disconnect that connector and check the continuity using a tester.

Check the continuity between the pins 1 - 6 and 3 - 6, and between the pins 2 - 5 and 4 - 5. If there is no continuity between the pins, the EV coil is faulty.

4. If no EV generates latching sound in the above step 2, the outdoor unit PCB is faulty.

5. If the continuity is confirmed in the above step 3, mount a good coil (which generated latching sound) in the EV unit that did not generate latching sound, and check to see if that EV generates latching sound.

∗If latching sound is generated, the outdoor unit PCB is faulty.

∗If latching sound is not generated, the EV unit is faulty.

Run this procedure

Fan Motor Connector Check

Check the connection of connector

Check motor power supply voltage output (pins 4 - 7)

Check motor control voltage (pins 4 - 3)

Check rotation command voltage output (pins 4 - 2)

Check rotation pulse input (pins 4 - 1)

Run this procedure
