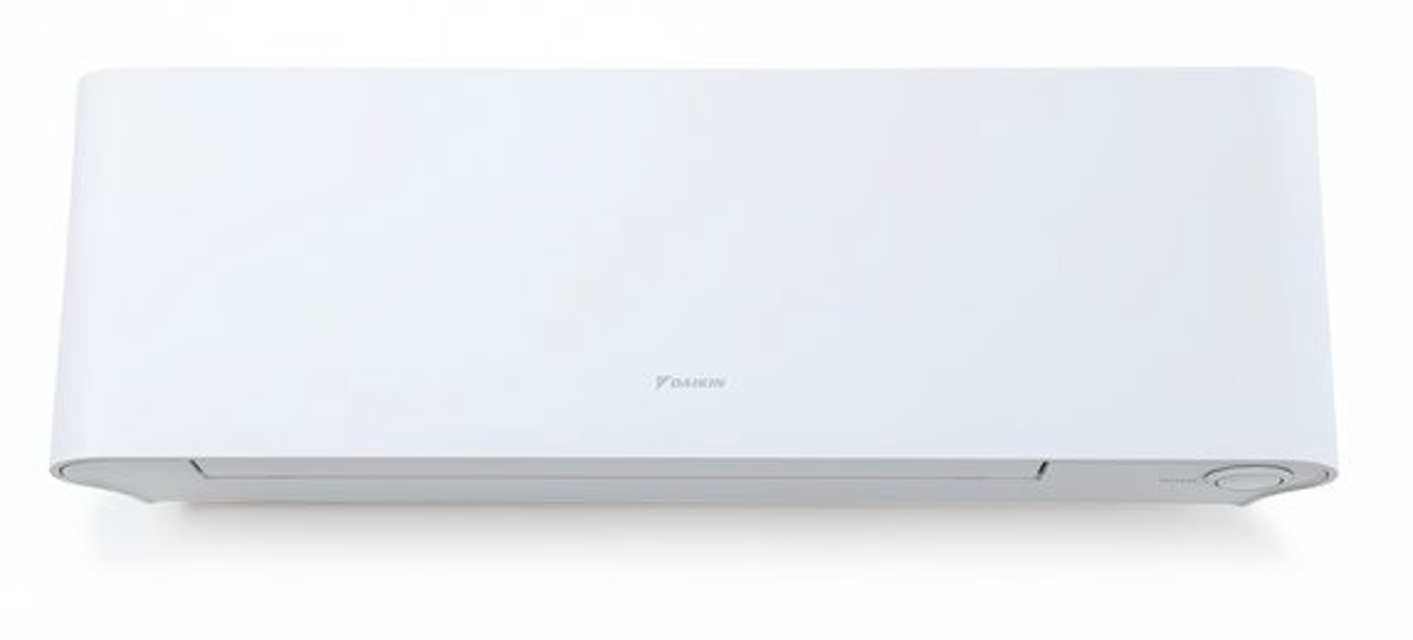

Daikin Wall Mounted Type Indoor Unit FTXG25JV1BW

Output voltage between pins 1 and 3

Number of pulses generated between pins 2 and 3 when the fan motor is operating

If NG in step 1, what is the defect?

If NG in step 2, what is the defect?

If OK in both steps 1 and 2, what is the action?

Conduct the followings to check the electronic expansion valve (EV).

1. Check to see if the EV connector is correctly inserted in the PCB. Match the EV unit number and the connector number.

2. Turn the power off and on again, and check to see if all the EVs generate latching sound.

3. If any of the EVs does not generate latching sound in the above step 2, disconnect that connector and check the continuity using a tester.

Check the continuity between the pins 1 - 6 and 3 - 6, and between the pins 2 - 5 and 4 - 5. If there is no continuity between the pins, the EV coil is faulty.

4. If no EV generates latching sound in the above step 2, the outdoor unit PCB is faulty.

5. If the continuity is confirmed in the above step 3, mount a good coil (which generated latching sound) in the EV unit that did not generate latching sound, and check to see if that EV generates latching sound.

∗If latching sound is generated, the outdoor unit PCB is faulty.

∗If latching sound is not generated, the EV unit is faulty.

Warning: Disconnect the connectors of the thermistors from the PCB before proceeding

Thermistors disconnected from the PCB?

Measure the resistance of each thermistor using tester

Select the model of the thermistor

For the models in which the thermistor is directly mounted on the PCB, disconnect the connector for the PCB and measure.

Thermistor disconnected from the PCB for direct mounted models?

Measure the resistance of the directly mounted thermistor

Sign off on the thermistor resistance check

Check the connection of connector

Check motor power supply voltage output (pins 4 - 7)

Check motor control voltage (pins 4 - 3)

Check rotation command voltage output (pins 4 - 2)

Check rotation pulse input (pins 4 - 1)

Warning: This check requires trained personnel with PPE!

Enter the power supply waveform measurement between No. 1 and No. 2 on the terminal board

Is the power supply waveform a sine wave as shown in Fig.1?

Is there waveform disturbance near the zero cross as shown in the sections circled in Fig.2?

Upload a photo of the measured waveform

Sign off on the power supply waveform check
