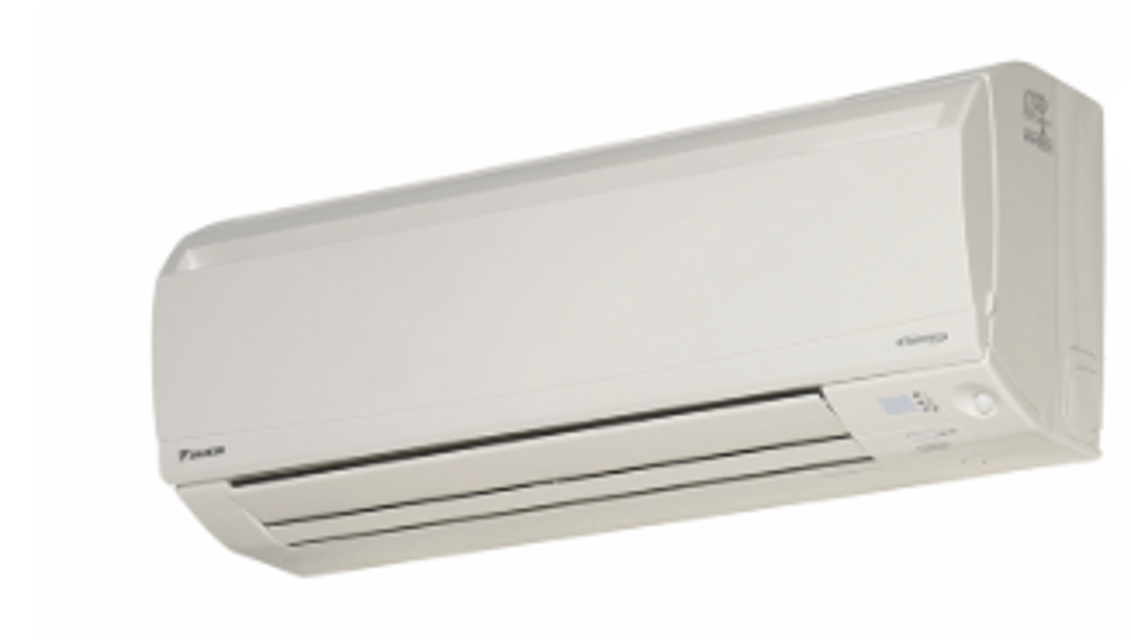

Daikin Wall-Mounted Indoor Unit FTKS71LVMA

CAUTION: Before cleaning, be sure to stop the operation and turn the breaker off.

CAUTION: Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury.

How to open / close the front panel

Hold the front panel by the panel tabs on the 2 sides and open it.

Press the front panel at both sides and the center to close it.

Wash the air filters with water or clean them with vacuum cleaner.

If the dust does not come off easily

CAUTION: Before cleaning, be sure to stop the operation and turn the breaker off.

Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury.

Front panel opened successfully

Air filters pulled out successfully

Titanium apatite photocatalytic air-purifying filter removed successfully

Titanium apatite photocatalytic air-purifying filter cleaned or replaced successfully

Titanium apatite photocatalytic air-purifying filter set back successfully

Front panel closed successfully

NOTE: Operation with dirty filters may result in poor heating or cooling and may cause odour.

How to open / close the front panel

• Hold the front panel by the panel tabs on the 2 sides and open it.

• Press the front panel at both sides and the center to close it

Vacuum dust or replace the filter.

For cleaning, do not use the materials as follows.

• Benzine, gasoline, thinner, other volatile oils.

Wipe it clean with soft, dry cloth.

Do not use any water hotter than 40˚C (104˚F), or volatile liquids such as benzine, gasoline and thinner, polishing powder, or anything hard such as a scrub brush.

When the unit is not used for a long time

(1) On a sunny day, keep the system running for half a day in the FAN mode to dry it up inside.

1 Press mode to select the cooling mode.

2 Press temp to adjust the set temperature to 32˚C (90˚F).

The airflow rate remains the same, and is not adjustable.
