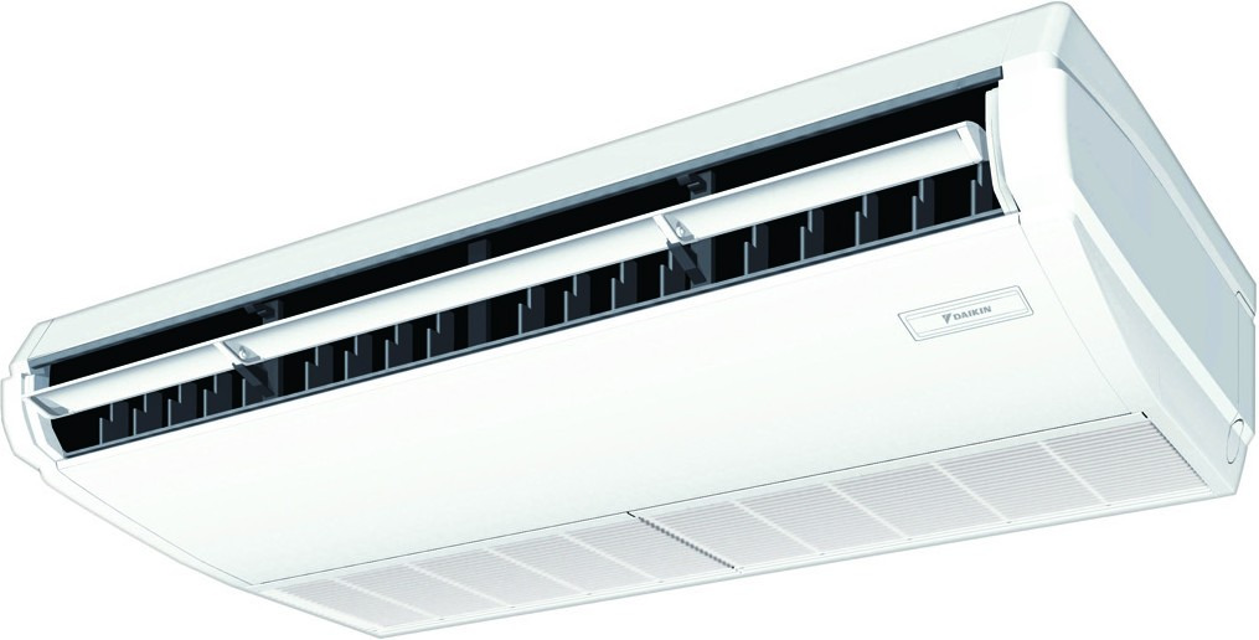

Daikin VRV System Air Conditioner FHQ71CAVEB

WARNING! Do not use flammable gas (such as hair sprays and insecticides) near the air conditioner. Do not wipe the air conditioner with benzine or thinner. It may cause cracks, electric shocks or a fire. Never put your fingers or rods in the air inlet, air outlet or horizontal blade. The fan is rotating at high speed, so you would get injured.

CAUTION! Do not wash the air conditioner with water. It may cause electric shocks or a fire due to leakage. Make sure to turn off the air conditioner when taking care of the air conditioner and disconnect the power supply breaker. Unless the power supply is disconnected, it may cause electric shocks and injuries. When working at a high place, give caution to your footing. If the scaffold is unstable, it may cause injuries due to fall and stumbling.

NOTE! Do not remove the air filter unless for cleaning. It may cause failure. Do not attach substance (such as paper towels) other than the specified air filter to the air inlet. The performance may drop and cause freeze-up/water leakage.

WARNING! Do not use flammable gas (such as hair sprays and insecticides) near the air conditioner

WARNING! Do not wipe the air conditioner with benzine or thinner. It may cause cracks, electric shocks or a fire

WARNING! Never put your fingers or rods in the air inlet, air outlet or horizontal blade. The fan is rotating at high speed, so you would get injured

CAUTION! Do not wash the air conditioner with water. It may cause electric shocks or a fire due to leakage

CAUTION! Make sure to turn off the air conditioner when taking care of the air conditioner and disconnect the power supply breaker. Unless the power supply is disconnected, it may cause electric shocks and injuries

CAUTION! When working at a high place, give caution to your footing. If the scaffold is unstable, it may cause injuries due to fall and stumbling

NOTE! Do not remove the air filter unless for cleaning. It may cause failure

NOTE! Do not attach substance (such as paper towels) other than the specified air filter to the air inlet. The performance may drop and cause freeze-up/water leakage

Wipe them with a dry soft cloth

WARNING! Do not use flammable gas (such as hair sprays and insecticides) near the air conditioner. Do not wipe the air conditioner with benzine or thinner. It may cause cracks, electric shocks or a fire. Never put your fingers or rods in the air inlet, air outlet or horizontal blade. The fan is rotating at high speed, so you would get injured.

CAUTION! Do not wash the air conditioner with water. It may cause electric shocks or a fire due to leakage. Make sure to turn off the air conditioner when taking care of the air conditioner and disconnect the power supply breaker. Unless the power supply is disconnected, it may cause electric shocks and injuries. When working at a high place, give caution to your footing. If the scaffold is unstable, it may cause injuries due to fall and stumbling.

NOTE! Do not remove the air filter unless for cleaning. It may cause failure. Do not attach substance (such as paper towels) other than the specified air filter to the air inlet. The performance may drop and cause freeze-up/water leakage.

NOTICE! When the remote controller indicates “Time to clean filter”, clean the air filter. It indicates after running for a certain time. You may change the time of indication “Time to clean filter”. If the indoor unit is used in a space where the air is more contaminated, ask your local dealer for solution. If it becomes difficult to remove contamination from the air filter, replace the air filter. (Air filter for replacement is an optional accessory)

Open the suction grille. Slide the knob to the arrow direction and slowly open the grille.

Take out the air filter. Push up the knobs at 2 places and take out the air filter.

Clean the air filter. Clean the contamination with a vacuum cleaner or wash it with water. If the air filter is extremely contaminated, wash it with neutral detergent using a soft brush. After dewatering, dry the air filter in the shade.

Attach the air filter. After the air filter is cleaned, return the air filter to the original place as it was attached before.

Close the suction grille. Slide all the knobs in the reverse order mentioned in the Clause 1 and securely fix the grille.
