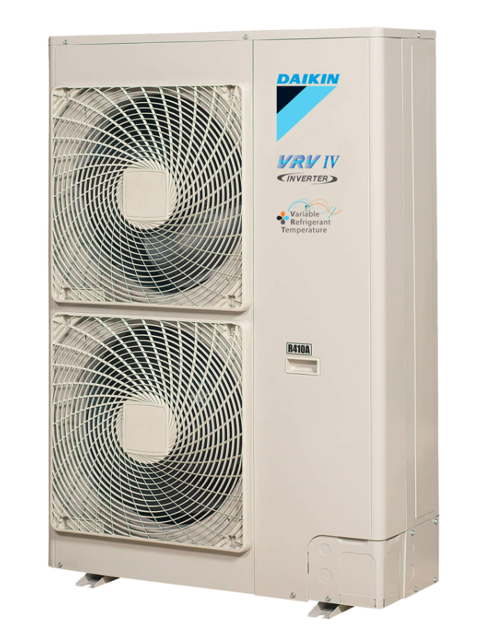

Daikin VRV IV-S System Air Conditioner RXYSQ8TMY1B
Create an account to install this asset package.
Maintenance Plans for Daikin VRV IV-S System Air Conditioner Model RXYSQ8TMY1B
Integrate maintenance plans directly into your work orders in MaintainX.
20000 Hourly Expansion Valve Maintenance
NOTICE: The mentioned maintenance and replacement cycles do not relate to the warranty period of the components.
The table assumes the following conditions of use:
The table indicates main components. Refer to your maintenance and inspection contract for more details.
The table indicates recommended intervals of maintenance cycles. However, in order to keep the unit operational as long as possible, maintenance work may be required sooner. Recommended intervals can be used for appropriate maintenance design in terms of budgeting maintenance and inspection fees.
Depending on the content of the maintenance and inspection contract, inspection and maintenance cycles may in reality be shorter than listed.
Expansion valve replaced?
Sign off on the expansion valve maintenance
5 Yearly Air Filter Replacement
Considerations for Maintenance and Replacement Cycles
Check if the unit is used in the following conditions
Recommended Replacement Cycle of Wear Parts
Air Filter Replacement
Notice
Refer to your maintenance and inspection contract for more details
Information
Damage due to taking apart or cleaning interiors of units by anyone other than our authorised dealers may not be included in the warranty
Sign off on the air filter replacement
1 Yearly VRV IV-S System Air Conditioner Inspection
Warning: This inspection requires trained personnel with PPE!
Inspect Electric motor
Inspect PCB
Inspect Heat exchanger
Inspect Sensor (thermistor, etc.)
Inspect User interface and switches
Inspect Drain pan
Inspect Expansion valve
Inspect Solenoid valve
25000 Hourly PCB Maintenance
Be aware that the mentioned maintenance and replacement cycles do not relate to the warranty period of the components.
Replace PCB
The table assumes the following conditions of use:
NOTICE
The table indicates main components. Refer to your maintenance and inspection contract for more details.
The table indicates recommended intervals of maintenance cycles. However, in order to keep the unit operational as long as possible, maintenance work may be required sooner. Recommended intervals can be used for appropriate maintenance design in terms of budgeting maintenance and inspection fees.
Depending on the content of the maintenance and inspection contract, inspection and maintenance cycles may in reality be shorter than listed.
PCB replaced successfully?
Sign off on the PCB maintenance
1 Yearly Heat Exchanger Check
Yearly Heat Exchanger Check
Heat exchanger checked?
Heat exchanger blocked due to dust, dirt, leaves, etc.?
Heat exchanger cleaned?
Enter the pressure reading after cleaning
Is the pressure reading within the normal range?
Sign off on the heat exchanger check
