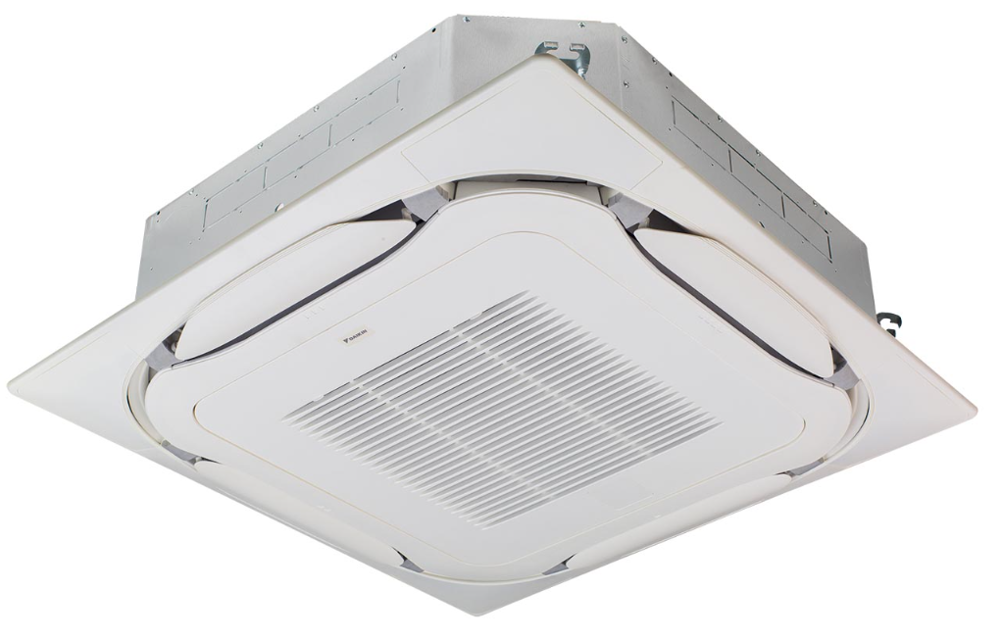

Daikin Split System Air Conditioner FCAG60BVEB

Create an account to install this asset package.

Maintenance Plans for Daikin Split System Air Conditioner Model FCAG60BVEB

Integrate maintenance plans directly into your work orders in MaintainX.

Suction Grille Cleaning

NOTICE: Do NOT use water of 50°C or higher. Possible consequence: Discoloration and deformation.

Open the suction grille.

Remove the suction grille.

Remove the air filter.

Clean the suction grille. Wash with a soft bristle brush, and water or neutral detergent. If the suction grille is very dirty, use a typical kitchen cleaner, leave it on for 10 min, then wash it with water.

Reattach the air filter (step 3 in reverse order).

Reattach the suction grille and close it (step 2 and 1 in reverse order).

Sign off on the suction grille cleaning

Run this procedure

20000 Hourly Solenoid Valve Maintenance

Warning: The mentioned maintenance and replacement cycles do not relate to the warranty period of the components.

The table assumes the following conditions of use:

NOTICE

The table indicates main components. Refer to your maintenance and inspection contract for more details.

The table indicates recommended intervals of maintenance cycles. However, in order to keep the unit operational as long as possible, maintenance work may be required sooner. Recommended intervals can be used for appropriate maintenance design in terms of budgeting maintenance and inspection fees.

Depending on the content of the maintenance and inspection contract, inspection and maintenance cycles may in reality be shorter than listed.

Solenoid valve replaced

Enter the current operational hours of the unit

Sign off on the solenoid valve maintenance

Run this procedure

1 Yearly Split System Air Conditioner Inspection

Be aware that the mentioned maintenance and replacement cycles do not relate to the warranty period of the components.

Inspect Electric motor

Inspect PCB

Inspect Heat exchanger

Inspect Sensor (thermistor, etc.)

Inspect User interface and switches

Inspect Drain pan

Inspect Expansion valve

Inspect Solenoid valve

Run this procedure

6 Monthly Air Filter Cleaning

When to clean the air filter:

▪ Rule of thumb: Clean every 6 months. If the air in the room is extremely contaminated, increase the cleaning frequency.

▪ Depending on the settings, the user interface can display the TIME TO CLEAN AIR FILTER notification. Clean the air filter when the notification is displayed.

▪ If the dirt becomes impossible to clean, change the air filter (= optional equipment).

How to clean the air filter:

NOTICE: Do NOT use water of 50°C or higher. Possible consequence: Discoloration and deformation.

1 Open the suction grille.

2 Remove the air filter.

3 Clean the air filter. Use a vacuum cleaner or wash with water. If the air filter is very dirty, use a soft brush and neutral detergent.

Run this procedure

5 Yearly Sensor Maintenance

Warning: The mentioned maintenance and replacement cycles do not relate to the warranty period of the components.

The table assumes the following conditions of use:

NOTICE

The table indicates main components. Refer to your maintenance and inspection contract for more details.
