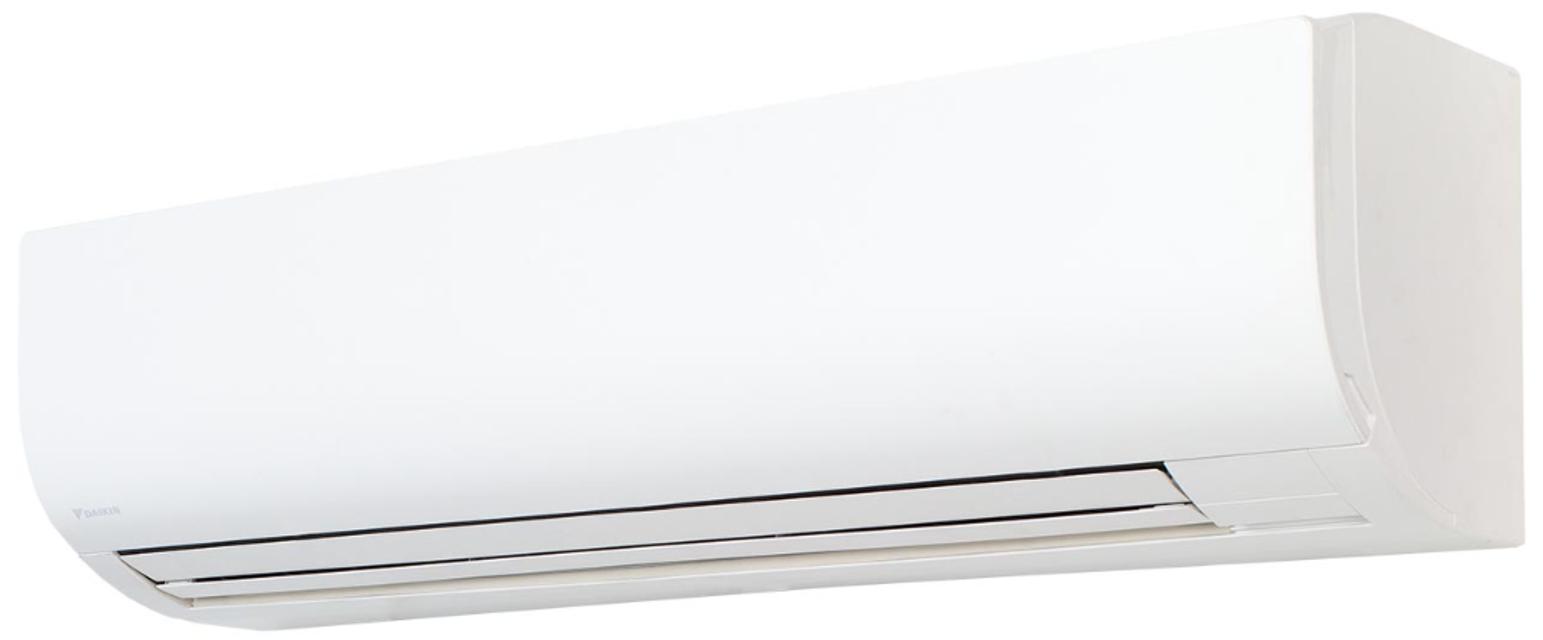

Daikin Split System Air Conditioner FAA100BUV1B

CAUTION: Wear adequate personal protective equipment (protective gloves, safety glasses,…) when installing, maintaining or servicing the system.

Grille clamps removed (only for class 100)

Front grille removed without catching the horizontal flaps

Sign off on the front grille removal

Remove the air filters (refer to '10.2.3 To clean the air filter' [436])

Pour approximately 1 l of water in the drain pan

Reattach the air filters (refer to '10.2.3 To clean the air filter' [436])

NOTICE: Do NOT use water of 50°C or higher. Possible consequence: Discoloration and deformation.

▪ Rule of thumb: Clean every 6 months. If the air in the room is extremely contaminated, increase the cleaning frequency.

▪ Depending on the settings, the user interface can display the "Time to clean filter" notification. Clean the air filter when the notification is displayed.

▪ If the dirt becomes impossible to clean, change the air filter (= optional equipment).

1 Open the front panel. Hold the front panel by the panel tabs on both sides and open until the panel stops.

2 Remove the air filter. Push up the tab in the center of the air filter slightly then pull the air filter out in a downward direction.

3 Clean the air filter. Use a vacuum cleaner or wash with water. If the air filter is very dirty, use a soft brush and neutral detergent.

INFORMATION: To connect the piping on right-side, right-bottom, left-side or left-bottom, the pipe port cover MUST be removed.

Cut off the pipe port cover from inside the front grille using a coping saw

Remove any burrs along the cut section using a half round needle file

NOTICE: Do NOT use nippers to remove the pipe port cover, as this would damage the front grille

Sign off on the pipe port cover removal

WARNING: Do NOT let the indoor unit get wet. Possible consequence: Electric shock or fire.

NOTICE: Do NOT use gasoline, benzene, thinner polishing powder or liquid insecticide. Possible consequence: Discoloration and deformation.

NOTICE: Do NOT use water or air of 50°C or higher. Possible consequence: Discoloration and deformation.

Open the front panel. Hold the front panel by the panel tabs on both sides and open until the panel stops.

Remove the front panel by pushing hooks on either side of the front panel towards the side of the unit and remove the panel.

Clean the front panel. Wipe it with a soft cloth soaked in water by using only neutral detergent.

Wipe panel with a dry soft cloth and let it dry up in the shade.

Attach the front panel. Align the hooks of the front panel with the slots and push them all the way in.
