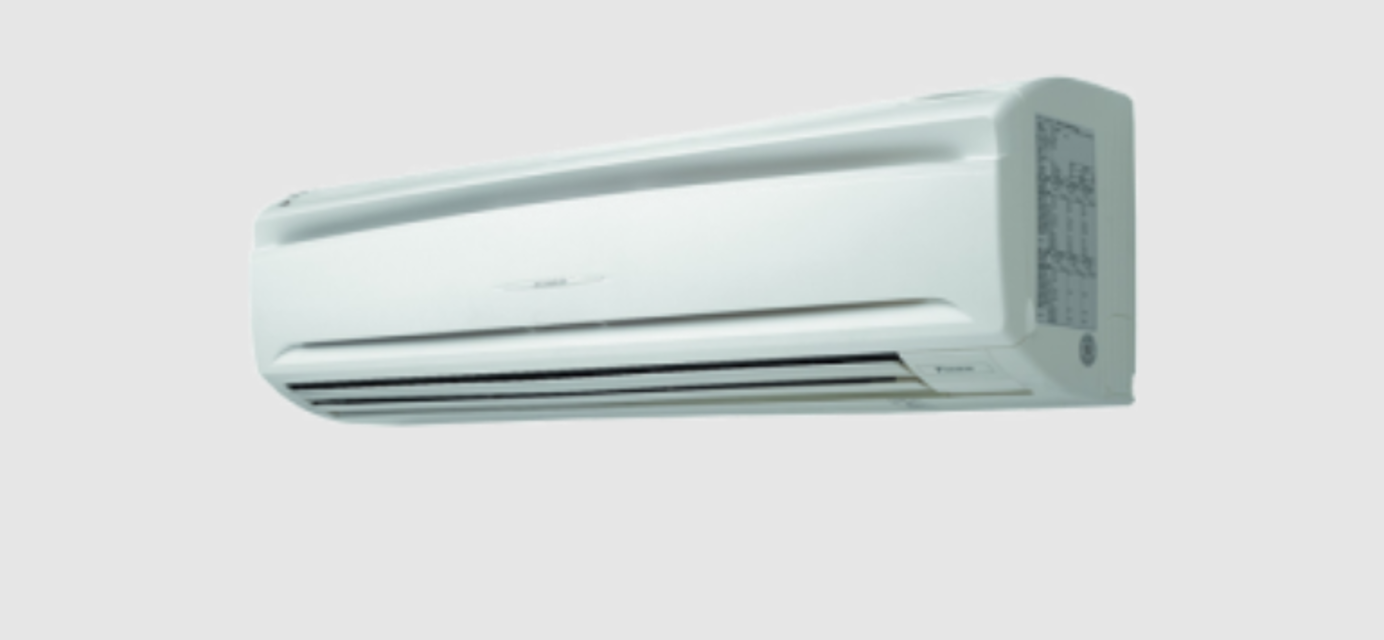

Daikin Split System Air Conditioner FAA100AUVEB

Create an account to install this asset package.

Maintenance Plans for Daikin Split System Air Conditioner Model FAA100AUVEB

Integrate maintenance plans directly into your work orders in MaintainX.

Front Panel Cleaning

CAUTION: Hold the front panel firmly so that it does not fall. Do not use water which is 50°C or more, benzene, gasoline, thinner, or other volatile substances, polishing powder, or hard scrub brushes to clean the panel. Do not expose it to fire, as doing so may result in burning. Make sure the front panel is solidly in place.

Open the front panel. Place your fingers on the panel protrusions on the left and right sides of the main unit and open until the panel stops.

Remove the front panel. Push the hook on either side of the front panel towards the center of the main unit and remove it. (You can also remove it by sliding the front panel either to the left or right and pulling it forward.)

Clean the front panel. Wipe gently with a soft wet cloth. Only use neutral cleaning agents. After washing, wipe off the remaining water completely and dry in the shade.

Attach the front panel. Set the hooks of the front panel into the slots and push them in all the way. Close the front panel slowly in this state.

Close the front panel.

Sign off on the front panel cleaning

Run this procedure

200 Hourly Air Filter Cleaning

When the remote controller indicates “ ” or “Time to clean filter”, clean the air filter.

NOTE: The time until the display appears can be changed. For information on using the air conditioner in a dirty place, contact your dealer.

Open the front panel. Place your fingers on the panel protrusions on the left and right sides of the main unit and open until the panel stops.

Pull out the air filter. Push up the tab in the center of the air filter slightly, then pull out the filter downward.

NOTE: After removing the filter, do not touch the heat exchanger to avoid cutting your hand.

Clean the air filter. Use vacuum cleaner A) or wash the air filter with water B).

A)Using a vacuum cleaner

B)Washing with water

When the air filter is very dirty, use soft brush and neutral detergent. Remove water and dry in the shade.

Run this procedure

Air Inlet Cleaning

Warning: Do not use gasoline, benzene, thinner, polishing powder, or commercially supplied liquid insecticide. This may cause discoloration or deformation.

Do not use water which is 50°C or more. This may cause discoloration or deformation.

Wipe with a soft dry cloth

Is there a stain that cannot be removed?

Wipe the stain with a cloth firmly wringed after soaked in diluted neutral detergent

Wipe the area with a dry cloth after using detergent

Sign off on the air inlet cleaning

Run this procedure
