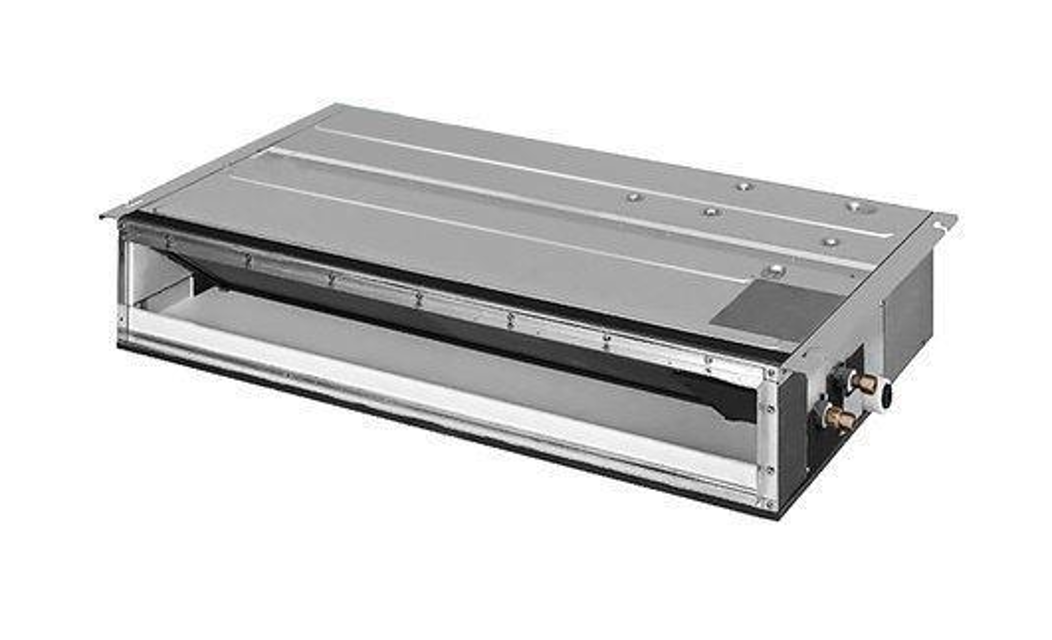

Daikin Slim Duct Indoor Units FDXS60CVMB

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the screw and remove the four way valve coil.

Warning: Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine.

Warning: If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is exposed to flames, toxic gas may be generated.)

Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to collect all the refrigerant gas.

Cautions for restoration: Restore the piping by nonoxidation brazing.

It is required to prevent the carbonization of the oil inside the four way valve and the deterioration of the gaskets affected by heat. (Keep below 120°C.) For the sake of this, wrap the four way valve with wet cloth and provide water so that the cloth does not dry.

Note: Do not use a metal saw for cutting pipes by all means because the sawdust comes into the circuit.

When withdrawing the pipes, be careful not to pinch them firmly with pliers. The pipes may get deformed.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the 4 screws and lift the top panel. Take care not to cut your finger by the fins of the outdoor heat exchanger.

Remove the 4 screws and remove the discharge grille. Slide the discharge grille upwards and remove it. The discharge grille has 4 hooks.

Remove the 6 screws of the front panel.

Push the front panel and lift the shield plate to unfasten the hooks.

Unfasten the left side hooks, and then the right side hook.

Lift the front panel while pushing the left side panel inwards.

Lift the front panel and unfasten the right side hook.

When reassembling, fit the right side of the front panel first.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Pull out the electronic expansion valve coil.

Warning: Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine.

Warning: If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is exposed to flames, toxic gas may be generated.)

Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to collect all the refrigerant gas.

Before working, make sure that the refrigerant gas is empty in the circuit.

Be sure to apply nitrogen replacement when heating up the brazed part.

Heat up the 2 brazed parts of the electronic expansion valve and remove it.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the sound blanket (back)

Remove the sound blanket (outer)

Warning: Since the piping ports are torn easily, remove the sound blanket carefully.

Remove the sound blanket (top upper)

Remove the sound blanket (top lower)

Remove the sound blanket (inner)

Release the discharge pipe thermistor

Warning: Be careful not to lose the clip for the thermistor.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Preparation: Remove the electrical box according to the “Removal of Electrical Box”.

Disconnect the connectors from the service monitor PCB [S52] [S102].

Detach the 4 clamps with pliers.

Remove the screws of the terminal board and the earth wire.

Unfasten the hook on the right.
