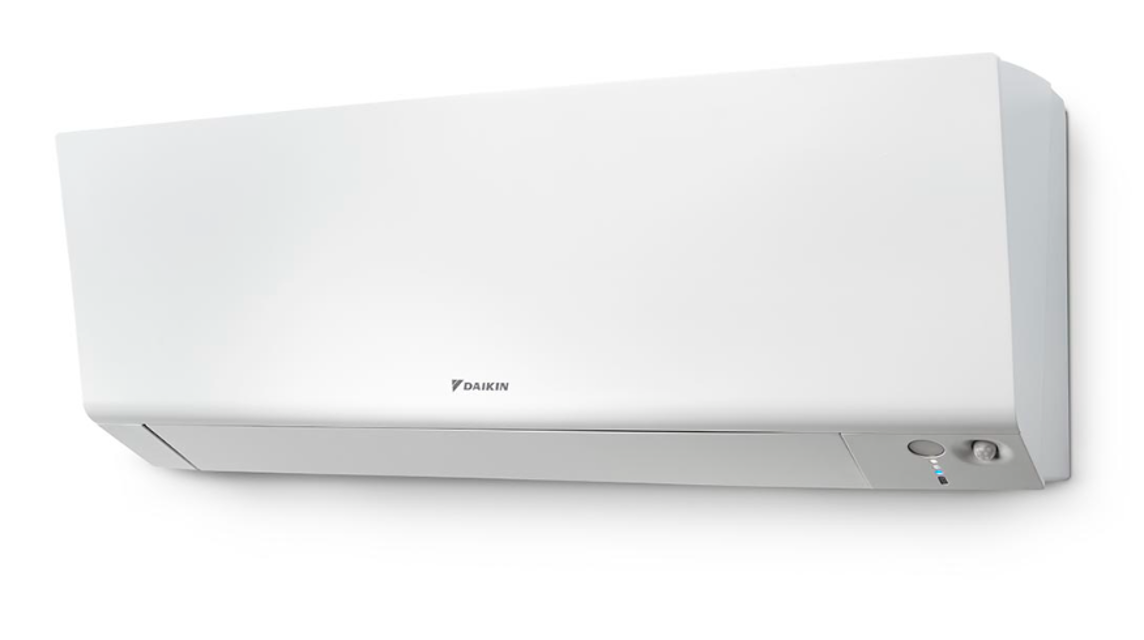

Daikin Room Air Conditioner FTXM25R5V1B

Warning: Ensure the air filters are turned off before starting the cleaning process.

Push the tab at the centre of each air filter, then pull it down.

Note: (class 50~71) The titanium apatite deodorising filter and the silver allergen removal air purifying filter MUST be removed before cleaning the air filter.

Remove the titanium apatite deodorising filter and the silver allergen removal air purifying filter from all 4 claws.

Wash the air filters with water or clean them with a vacuum cleaner.

Soak in lukewarm water for about 10 to 15 minutes.

INFORMATION: If the dust does NOT come off easily, wash them with a neutral detergent diluted in lukewarm water. Dry the air filters in the shade.

It is recommended to clean the air filters every 2 weeks.

Replace the filter every 3 years.

Remove the filter from the tabs (class 15~42) or frame (class 50~71)

Replace the filter with a new one

Do NOT throw away the filter frame, but use it again.

Dispose of the old filter as non-flammable waste.

Dealer contact for ordering titanium apatite deodorising filter and the silver allergen removal air purifying filter

Sign off on the filter replacement

WARNING: Improper detergents or cleaning procedure may cause damage on plastic components or water leakage. Splashed detergent on electric components, such as motors, may cause failure, smoke or ignition.

NOTICE: Do NOT use gasoline, benzene, thinner, polishing powder or liquid insecticide. Possible consequence: Discoloration and deformation.

Do NOT use water or air of 40°C or higher. Possible consequence: Discoloration and deformation.

Do NOT use polishing compounds.

Do NOT use a scrubbing brush. Possible consequence: The surface finishing peels off.

As an end user, you may NEVER clean inside parts of the unit by yourself; this work must be performed by a qualified service person. Contact your dealer.

DANGER: RISK OF ELECTROCUTION. Before cleaning, be sure to stop the operation, turn the breaker off or pull out the supply cord. Otherwise, an electric shock and injury may result.

Did you stop the operation, turn the breaker off or pull out the supply cord before cleaning?

Did you use a soft cloth for cleaning?

Hold the front panel by the panel tabs on both sides and open it.

Remove the front panel by sliding it to the left or the right and pulling it toward you.

Disconnect the front panel shaft on one side.

Disconnect the front panel shaft on the other side in the same manner.

Clean the filter with water every 6 months.

▪ for class 15~42: silver allergen removal air purifying filter from the tabs

▪ for class 50~71: titanium apatite deodorising filter and the silver allergen removal air purifying filter from all 4 claws.

2 Remove the dust from the filter with a vacuum cleaner.

3 Soak the filter for 10 to 15 minutes in warm water.

Note: (class 50~71) Do NOT remove the filter from the frame.

4 After washing, shake off remaining water and dry the filter in the shade. Do NOT wring out the filter when removing water.;;
