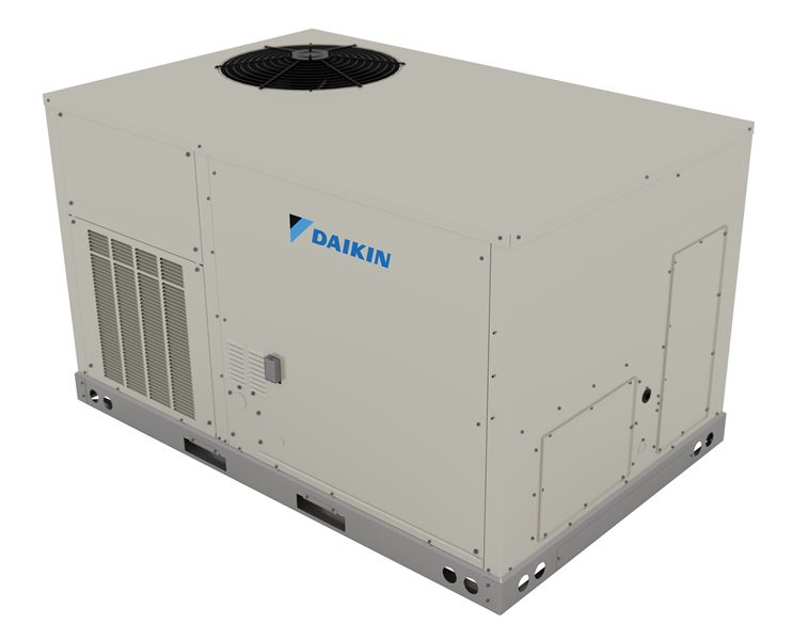

Daikin Packaged Gas / Electric Unit DFG0603DH000015AA

Warning: This procedure should be performed by trained personnel only!

If the flame current is not dropping, do not proceed with the cleaning.

Upload a photo of the flame sensor before cleaning

Cleaned the flame sensor with steel wool carefully?

Enter the microamp signal after cleaning

Sign off on the flame sensor cleaning

WARNING! ELECTRICAL SHOCK, FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly could result in dangerous operation, serious injury, death or property damage

Improper servicing could result in dangerous operation, serious injury, death or property damage

Before servicing, disconnect all electrical power to furnace

When servicing controls, label all wires prior to disconnecting. Reconnect wires correctly

Verify proper operation after servicing

WARNING! HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH

WARNING! TO PREVENT PERSONAL INJURY OR DEATH DUE TO IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE, REFER TO THIS MANUAL. FOR ADDITIONAL ASSISTANCE OR INFORMATION, CONSULT A QUALIFIED INSTALLER, SERVICE AGENCY OR THE GAS SUPPLIER

CAUTION! SHEET METAL PARTS, SCREWS, CLIPS AND SIMILAR ITEMS INHERENTLY HAVE SHARP EDGES, AND IT IS NECESSARY THAT THE INSTALLER AND SERVICE PERSONNEL EXERCISE CAUTION

WARNING! TO AVOID PERSONAL INJURY OR DEATH DUE TO ELECTRIC SHOCK, DO NOT REMOVE ANY INTERNAL COMPARTMENT COVERS OR ATTEMPT ANY ADJUSTMENT. CONTACT A QUALIFIED SERVICER AT ONCE IF AN ABNORMAL FLAME SHOULD DEVELOP

All flue product carrying areas of the furnace, its vent system, and main burners should be examined by a qualified service agency before the start of each heating season

This examination is necessary for continued safe operation. Particular attention should be given to deterioration from corrosion or other sources

This examination is accomplished in the following manner

1. Disconnect power to the unit and remove furnace section access panel

a. Disconnect the wires from the gas valve after noting which wires are connected to each terminal

b. Disconnect wires from the flame rod and ignition electrode

c. Disconnect the gas piping at the union

CAUTION! Prior to servicing MCHE, be sure to disconnect the power supply and use lock-out methods to prevent the power from accidentally being turned on

During periods when the MCHE is not operated for longer than a week, the MCHE must be completely cleaned following the cleaning procedure. This practice must also be performed during short shut-down periods where corrosive deposits accumulate on the MCHE

Relative to tube & fin heat exchangers, MicroChannel heat exchanger coils tend to accumulate more dirt on the surface of the coil and less dirt inside the coil, making them easier to clean

Remove surface dirt, leaves, fibers, etc. with a vacuum cleaner (preferably with a brush or other soft attachment rather than a metal tube), compressed air blown from the inside out, and/or a soft bristle (not wire!) brush. Do not impact or scrape the coil with the vacuum tube, air nozzle, etc

STEP 2: Rinse the coil by following procedure

1. Rinse the coil by approved MCHE cleaner first, or rinsing by water directly

CAUTION! TO PREVENT PROPERTY DAMAGE DUE TO FIRE AND LOSS OF EQUIPMENT EFFICIENCY OR EQUIPMENT DAMAGE DUE TO DUST AND LINT BUILD UP ON INTERNAL PARTS, NEVER OPERATE UNIT WITHOUT AN AIR FILTER INSTALLED IN THE RETURN AIR SYSTEM

Every application may require a different frequency of replacement of dirty filters

Filters must be replaced at least every three months during operating seasons

Dirty throwaway filters should be discarded and replaced with a new, clean filter

Sign off on the filter replacement
