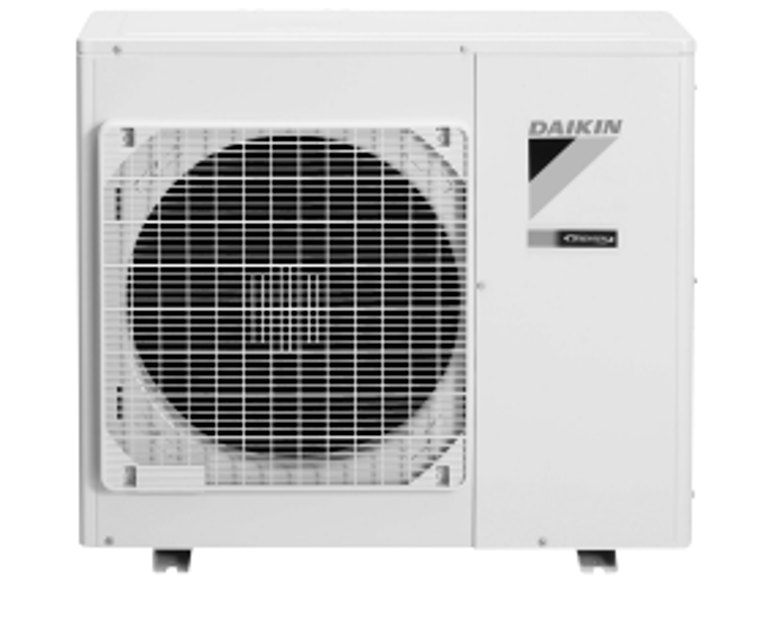

Daikin Outdoor Unit For Reverse Cycle System RXS50LBVMA

Create an account to install this asset package.

Maintenance Plans for Daikin Outdoor Unit For Reverse Cycle System Model RXS50LBVMA

Integrate maintenance plans directly into your work orders in MaintainX.

Electrical Box Removal

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1 Remove the screw on the stop valve mounting plate.

2 Remove the screw on the partition plate (1).

3 Remove the 2 screws to detach the earth wires.

4 Disconnect the connector for the fan motor [S70].

5 Release the fan motor lead wire from the 5 hooks.

When reassembling, do not use these 2 hooks.

6 Disconnect the connectors of the front side.

[S20]: electronic expansion valve coil

Run this procedure

Coils / Thermistor Removal

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1. Remove the electronic expansion valve coil.

1 Pull the electronic expansion valve coil out.

2. Remove the four way valve coil.

1 Remove the screw.

2 Remove the four way valve coil.

3. Remove the thermistors.

1 Pull out the outdoor heat exchanger thermistor.

2 Slightly open the sound blanket (outer).

Run this procedure

Sound Blanket Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Sound blanket (outer) opened

Sound blanket (top upper) removed

The sound blanket is fragile. Carefully pass the discharge pipe through it.

Screw removed and partition plate (1) slightly pushed to the left for easy work

Sound blanket (outer) removed

Sound blanket (top lower) removed

The sound blanket is fragile. Carefully pass the discharge pipe through it.

Sound blanket (inner) opened

Run this procedure

Fan Motor Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Did you wait for 10 minutes after turning off all power supplies?

Preparation: Remove the electrical box according to the 'Removal of Electrical Box'.

Did you remove the electrical box?

Warning: Be sure to remove the lower screws first. If the top screws are removed first, the fan motor may tilt down or fall and cause injury because its center of gravity is shifted to the front.

Did you remove the 2 lower screws first?

Did you remove the 2 upper screws?

Did you remove the fan motor?

When reassembling, make sure that the wire harness is facing downward.

Run this procedure

PCB Removal

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1 Disconnect the connectors [S52] [S102] from the service monitor PCB.

Preparation

Remove the electrical box according to the "Removal of Electrical Box".

2 Detach the 4 clamps with pliers and remove the service monitor PCB.

3 Remove the screws of the terminal board and the earth wire.
