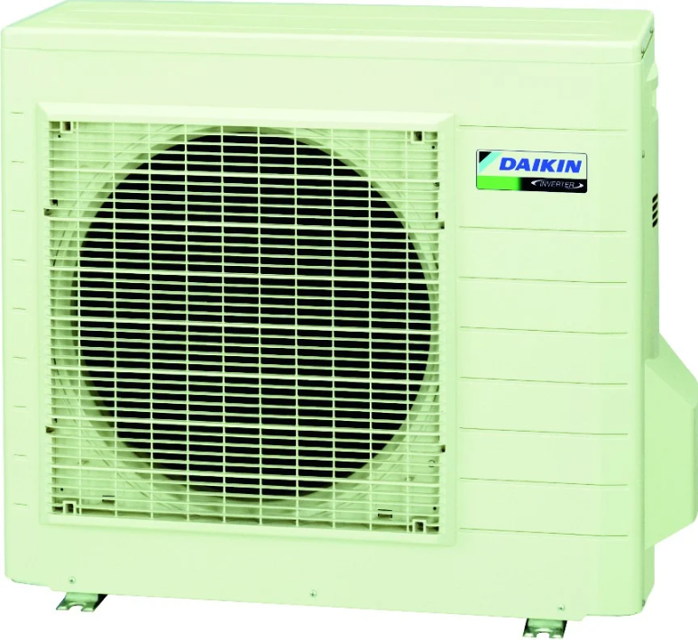

The Daikin Outdoor Heat Pump RXS60F3V1B is a high-efficiency HVAC solution designed for residential and commercial applications. This model offers reliable heating and cooling performance, ensuring optimal comfort while minimizing energy consumption. Regular maintenance is essential for longevity and efficiency.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Daikin Outdoor Heat Pump RXS60F3V1B

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Daikin Outdoor Heat Pump RXS60F3V1B

Create an account to install this asset package.

Maintenance Plans for Daikin Outdoor Heat Pump Model RXS60F3V1B

Integrate maintenance plans directly into your work orders in MaintainX.

Electronic Expansion Valve Check

EV connector correctly connected to the PCB

EV generates latching sound when power is turned off and on

Continuity confirmed when connector is disconnected and checked with a tester

Check the continuity between the pins

EV coil is not faulty

Outdoor unit PCB is not faulty

Note: The latching sound varies depending on the valve type.

Sign off on the electronic expansion valve check

Run this procedure

Outer Panel Removal

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1. Remove the panels.

1 Remove the 4 screws and lift the top panel.

Take care not to cut your finger by the fins of the outdoor heat exchanger.

2 Remove the 4 screws and remove the discharge grille.

Slide the discharge grille upwards and remove it.

The discharge grille has 4 hooks.

3 Remove the 6 screws of the front panel.

4 Push the front panel and lift the shield plate to unfasten the hooks.

Run this procedure

Electronic Expansion Valve Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Pull out the electronic expansion valve coil.

Remove the sheets of putty.

Warning: Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine.

Warning: If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is exposed to flames, toxic gas may be generated.)

Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to collect all the refrigerant gas.

Before working, make sure that the refrigerant gas is empty in the circuit.

Be sure to apply nitrogen replacement when heating up the brazed part.

Heat up the 2 brazed parts of the electronic expansion valve and remove it.

Run this procedure

Compressor Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the terminal cover.

Disconnect the lead wires of the compressor.

Release the clamp with pliers to detach the compressor lead wires.

Remove the putty.

Warning: Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine.

Warning: If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is exposed to flames, toxic gas may be generated.)

Warning: Since it may happen that the refrigerant oil in the compressor catches fire, prepare wet cloth so as to extinguish fire immediately.

Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to collect all the refrigerant gas.

Run this procedure

Power Module Check

Warning: Ensure that the voltage between (+) and (–) of the diode bridge (DB1) is approx. 0 V before proceeding.

Voltage between (+) and (–) of the diode bridge (DB1) is approx. 0 V?

Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the connector, press the protrusion on the connector.

Compressor harness connector successfully disconnected?

Measure resistance between the terminals of the DB1 and the terminals of the compressor with a multi-tester.

Enter the resistance measurement

Is the resistance measurement within the acceptable range?

Sign off on the power module check

Run this procedure
