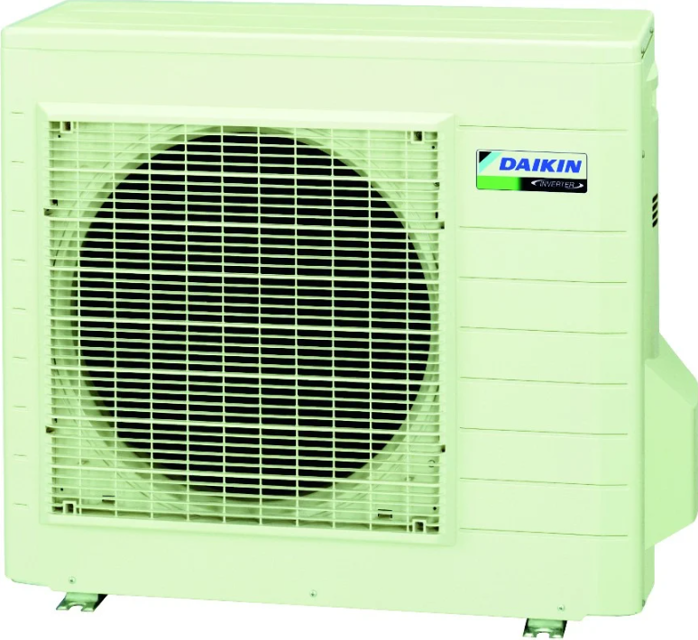

Daikin Outdoor Heat Pump RXS60F2V1B

Create an account to install this asset package.

Maintenance Plans for Daikin Outdoor Heat Pump Model RXS60F2V1B

Integrate maintenance plans directly into your work orders in MaintainX.

Sound Blanket / Thermistor Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the sound blanket (back)

Remove the sound blanket (outer)

Since the piping ports are torn easily, remove the sound blanket carefully.

Remove the sound blanket (top upper)

Remove the sound blanket (top lower)

Remove the sound blanket (inner)

Release the discharge pipe thermistor

Be careful not to lose the clip for the thermistor.

Run this procedure

Power Supply Waveform Check

Warning: This procedure requires trained personnel with PPE!

Enter the power supply waveform measurement between No.1 and No.2 on the terminal board

Is the power supply waveform a sine wave?

Upload a photo of the waveform

Is there waveform disturbance near the zero cross?

Sign off on the power supply waveform check

Run this procedure

Hall IC Check

Check the connector connection

With the power on, operation off, and the connector connected, check the following

Output voltage of about 5 V between pins 1 and 3

Generation of 3 pulses between pins 2 and 3 when the fan motor is operating

If NG in step 1, Defective PCB, Replace the PCB

If NG in step 2, Defective Hall IC, Replace the fan motor

If OK in both steps 1 and 2, Replace the PCB

Run this procedure

Thermistor Resistance Check

Warning: Disconnect the connectors of the thermistors from the PCB before proceeding

Thermistors disconnected from the PCB?

Measure the resistance of each thermistor using tester

Select the model of the thermistor

For the models in which the thermistor is directly mounted on the PCB, disconnect the connector for the PCB and measure.

Measure the resistance of the thermistor directly mounted on the PCB

Sign off on the thermistor resistance check

Run this procedure

Outdoor Fan / Fan Motor Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Preparation: Remove the top panel and the front panel according to the “Removal of Outer Panels”. This procedure is not necessary to remove the outdoor fan only.

Removed the screw of the shield plate?

Unfastened the 2 hooks and removed the shield plate?

Unfastened the 4 hooks of the electrical box cover and removed it?

Remove the fan motor.

Disconnected the connector for the fan motor [S70]?

Released the fan motor lead wire from the 7 hooks?

Removed the washer fitted nut of the outdoor fan?

Run this procedure
